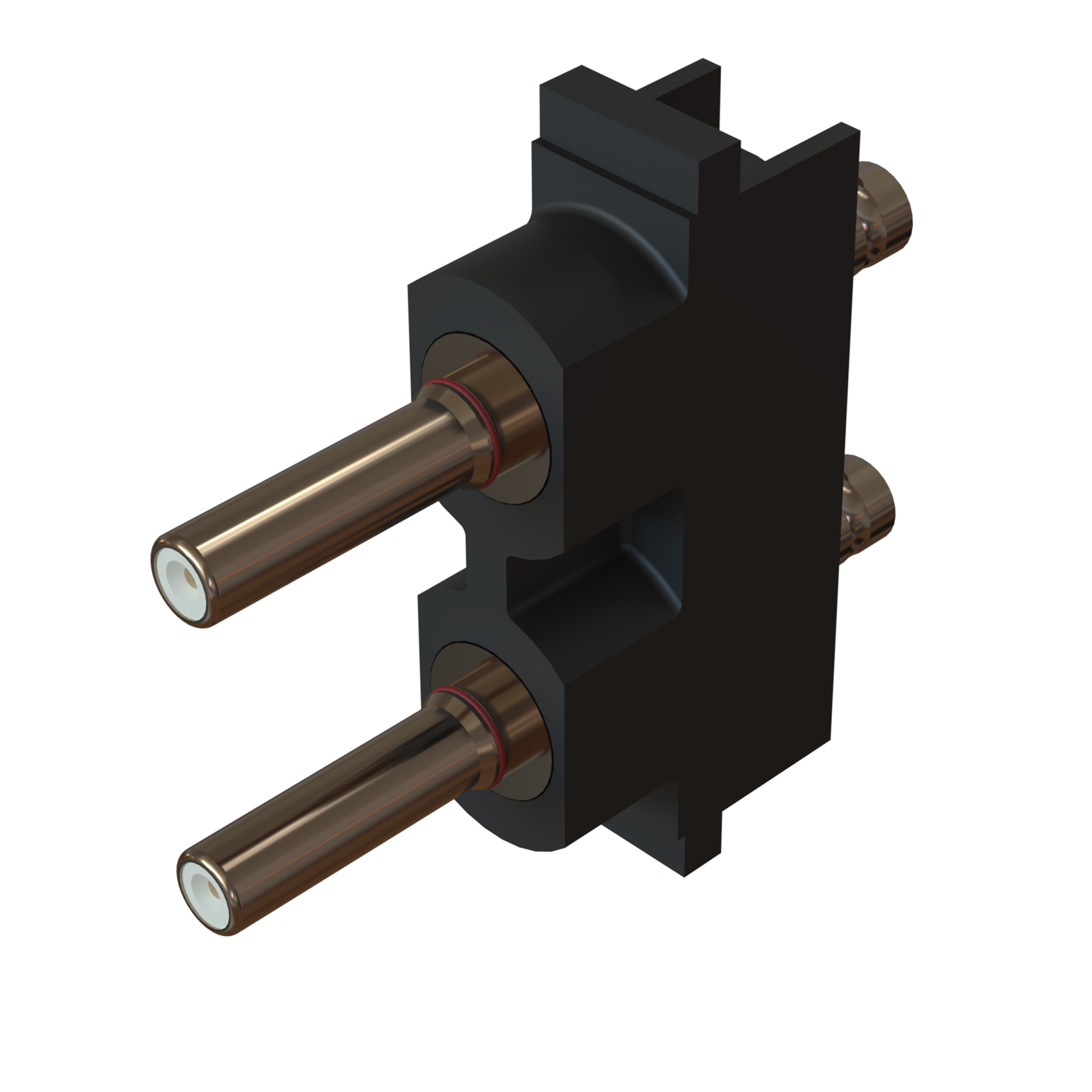

microMUSA plug to Micro BNC Jack 12G High Density 2 Way Adaptor Block
The 12G “microMUSA” panels are uniquely, 48-way configurations. Both use the same U-links. The 12G performance of the “microMUSA” connector system exceeds the requirements of SMPTE ST 2082-1 making it suitable for composite and component video, 270 Mb/s SDI, uncompressed 1080i or 1080p HD-SDI video and 4K UHD (2160P60) video up to 12GHz
| Electrical Specification | Value |
|---|---|
| Impedance | 75 Ohm |
| Frequency Range | Up to 18GHz |
| Dielectric Withstand Voltage | 1000 Veff |
| Insulation Resistance | 10000 M-Ohm |
| Mechanical Specification | Value |
|---|---|
| RoHS 3 Compliant | Yes |
| Mating Cycles Micro Musa | 5000 |
| Mating Cycles Micro BNC | 500 |
| Weight | 15.94g |
| Mating Force | 10N max |
| Un-Coupling Force | 25N max |
| Environmental Specification | Value |
|---|---|
| Operating Temperature | -30 to +70 Deg C |
| IP Rating ( Mated ) | IP30 |
| Material | Value |
|---|---|
| Centre Contact | Beryllium Copper |
| Outer Contact | Phosphor Bronze |
| Insulator | PTFE |
| Centre Contact Plating | Gold |
| Outer Contact Plating | Nickel |
| Pack Size | 1 |
| Return Loss | 3.0GHz | -20.49dB |
| 6.0GHz | -24.63dB | |
| 9.0GHz | -18.69dB | |
| 12.0GHz | -27.38dB |
| Connector Style | |
|---|---|
| Contact Termination Centre | |
| Contact Termination Outer | |
| Gender | |
| Impedance |
