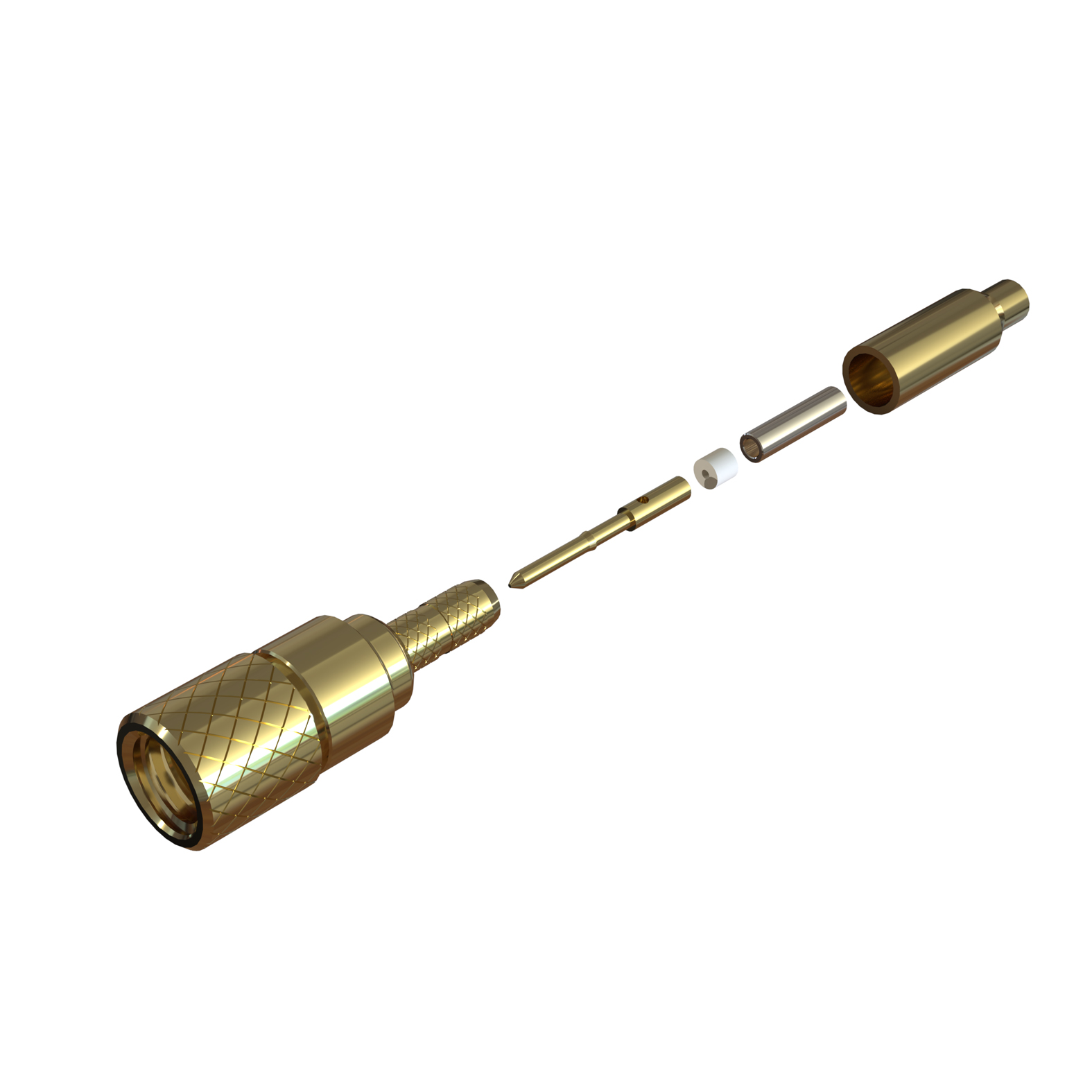

10-32 Straight Crimp / Crimp Plug
10-32 Straight Crimp / Crimp Straight gold Plated Plug suitabul for RG178 cable
Menu
- +44(0)20 8538 9090
10-32 Straight Crimp / Crimp Straight gold Plated Plug suitabul for RG178 cable
| Electrical Specification | Value |
|---|---|
| Impedance | 50 Ohm |
| Frequency Range | 0-2 GHz |
| Dielectric Withstand Voltage | 1500 Veff |
| Insulation Resistance | 5000 M-Ohm |
| Mating Cycles | 250 |
| Mechanical Specification | Value |
|---|---|
| RoHS 3 Compliant | Yes |
| Weight | 2.65g |
| Environmental Specification | Value |
|---|---|
| Operating Temperature | -55 to +155 Deg C |
| IP Rating ( Mated ) | IP64 |
| Material | Value |
|---|---|
| Centre Contact | Brass |
| Outer Contact | Brass |
| Insulator | PTFE |
| Centre Contact Plating | Gold |
| Outer Contact Plating | Gold |
| Pack Size | 1 |
| Cable Type | Cable Group | Impedance | Jacket O/D mm | Dielectric Material | Dielectric O/D mm | Centre Conductor Material | Centre Conductor O/D mm | Centre Conductor Stranding mm | Shielding Outer Conductor |
|---|---|---|---|---|---|---|---|---|---|
| RG178 | AA | 50 | 1.8 | PTFE | 0.84 | SCCS | 0.3 | 7/0.1 | Copper Braid |
| RG196 | AA | 50 | 1.83 | PTFE | 0.86 | SCCS | 0.3 | 7/0.1 | Copper Braid |
