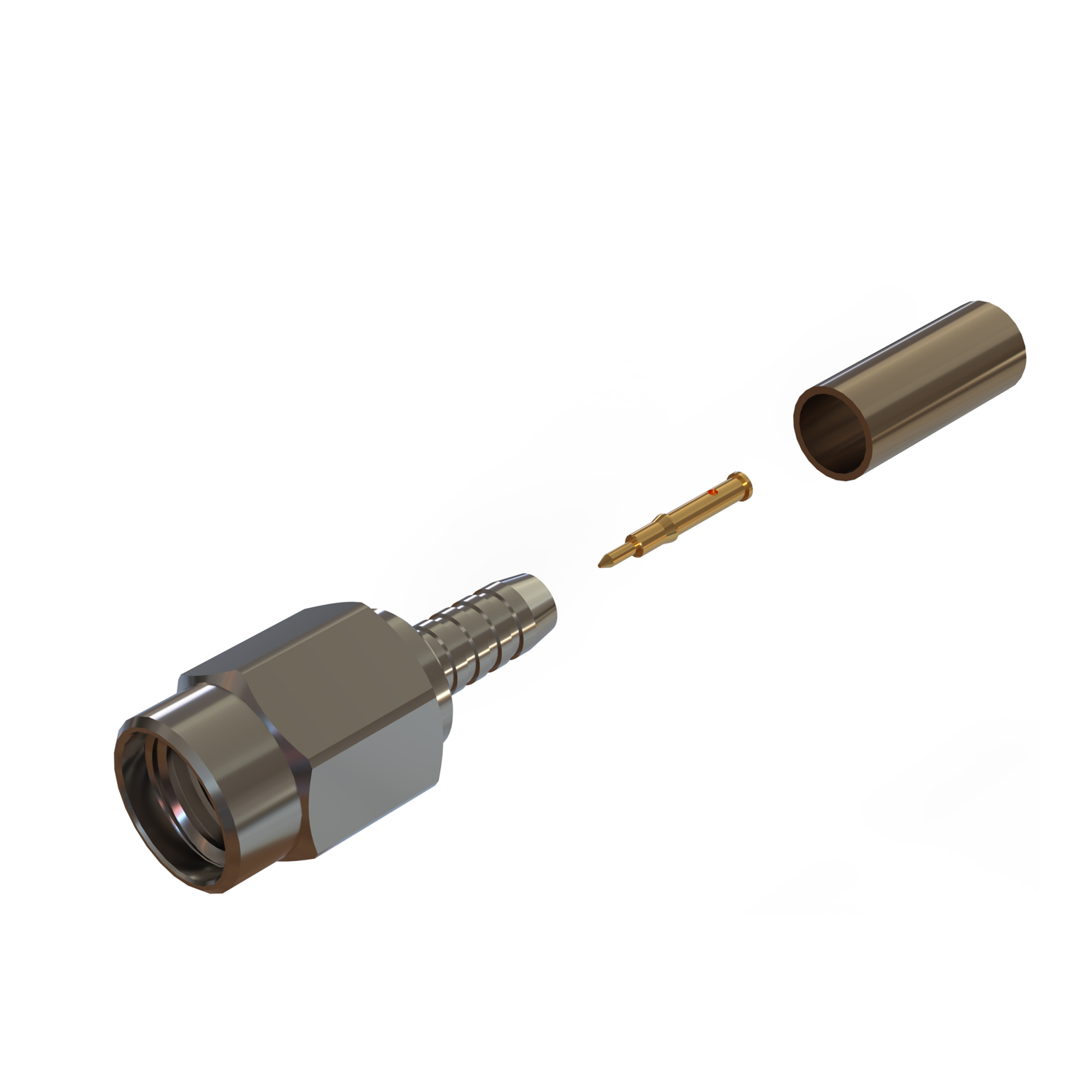

SSMA Stainless Steel Straight Crimp /Crimp Plug
| Electrical Specification | Value |
|---|---|
| Impedance | 50 Ohm |
| RoHS 3 Compliant | Yes |
| Centre Contact Termination | Crimp |
| Outer Contact Termination | Crimp |
| Weight | 1.91g |
| Mechanical Specification | Value |
|---|---|
| Operating Temperature | -55 to +155 Deg C |
| Inner Contact | Gold Plated Brass |
| Outer Contact | Passivated Stainless Steel |
| Insulater | PTFE |
| Cable Type | Cable Group | Impedance | Jacket O/D mm | Dielectric Material | Dielectric O/D mm | Centre Conductor Material | Centre Conductor O/D mm | Centre Conductor Stranding mm | Shielding Outer Conductor |
|---|---|---|---|---|---|---|---|---|---|
| KX22 | AD | 50 | 2.5 | PTFE | 1.52 | SCCS | 0.51 | 7/0.17 | Copper Braid |
| KX3 | AD | 50 | 2.54 | PE | 1.5 | CCS | 0.48 | 7/0.16 | Copper Braid |
| RG174 | AD | 50 | 2.79 | PE | 1.52 | BCCS | 0.48 | 7/0.16 | Copper Braid |
| RG188 | AD | 50 | 2.67 | PTFE | 1.52 | SCCS | 0.51 | 7/0.17 | Copper Braid |
| RG316 | AD | 50 | 2.49 | PTFE | 1.52 | SCCS | 0.51 | 7/0.17 | Copper Braid |
| Times LMR®100 | AD | 50 | 2.79 | PE | 1.52 | BCCS | 0.46 | 1/0.46 | Foil and Braid |
| URM95 | AD | 50 | 2.3 | PE | 1.5 | SCCS | 0.46 | 1/0.46 | Copper Braid |
| WBC100 | AD | 50 | 2.67 | PE | 1.52 | CCS | 0.46 | 1/0.46 | Foil and Braid |
| Connector Style | |
|---|---|
| Contact Termination Centre | |
| Contact Termination Outer | |
| Gender | |
| Impedance | |
| cable | AD |
