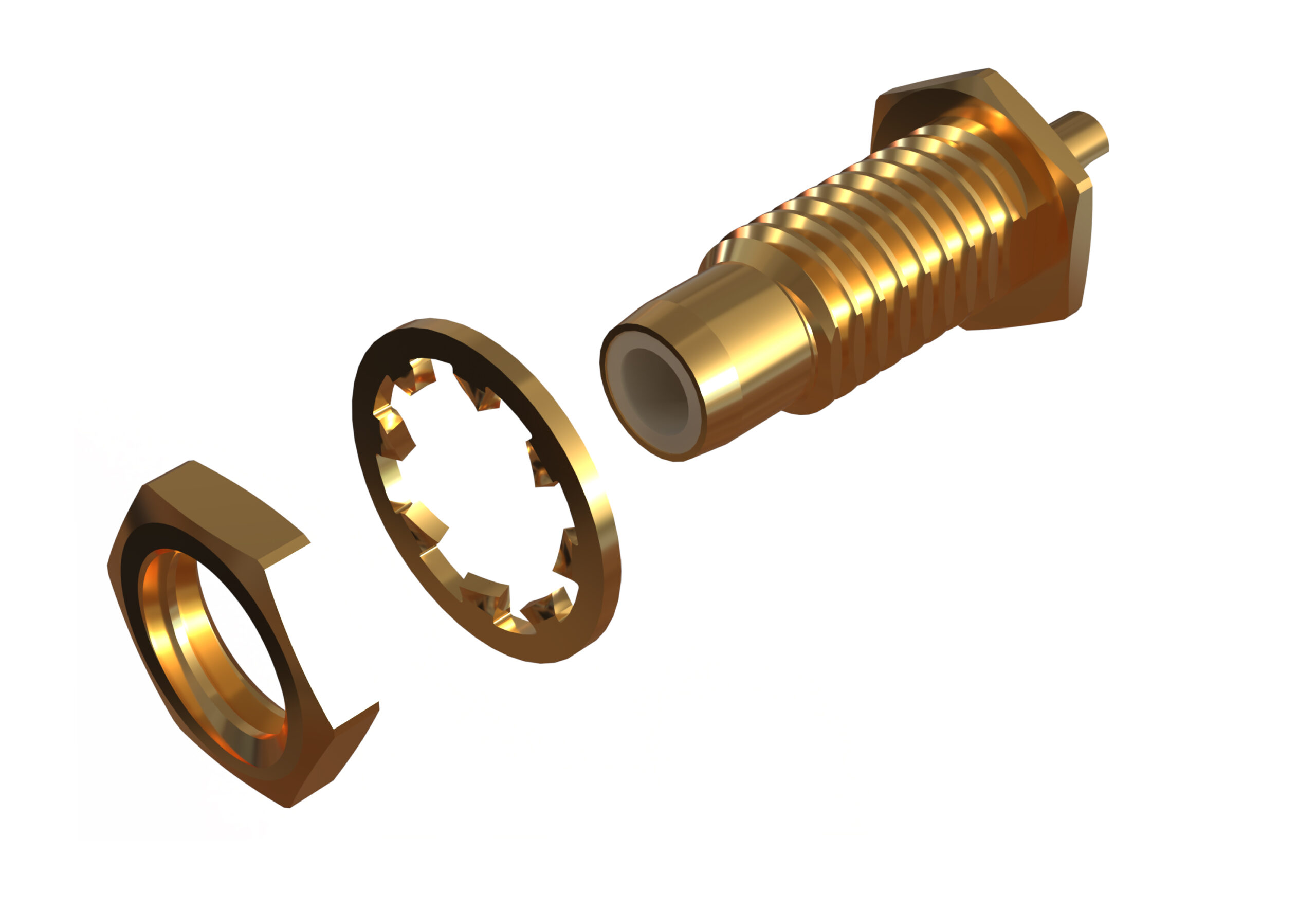

SMC rear mount straight bulkhead jack
SMC 50 ohm SMC rear mount straight bulkhead jack. With soldered gold plated centre contact and body.
Menu
- +44(0)20 8538 9090
SMC 50 ohm SMC rear mount straight bulkhead jack. With soldered gold plated centre contact and body.
| Electrical Specification | Value |
|---|---|
| Impedance | 50 Ohm |
| Frequency Range | 4GHz |
| Dielectric Withstand Voltage | 500 Veff |
| Insulation Resistance | 1000 M-Ohm |
| Mechanical Specification | Value |
|---|---|
| Design Standard | IEC 60169-10 |
| RoHS 3 Compliant | Yes |
| Centre Contact Termination | Solder |
| Mating Cycles | 250 |
| Contact Retention | 18N min |
| Environmental Specification | Value |
|---|---|
| Operating Temperature | -55 to +155 Deg C |
| IP Rating ( Mated ) | IP44 |
| Material | Value |
|---|---|
| Centre Contact | Phosphor Bronze |
| Outer Contact | Brass |
| Insulator | PTFE |
| Centre Contact Plating | Gold |
| Outer Contact Plating | Gold |
| Pack Size | 1 |
