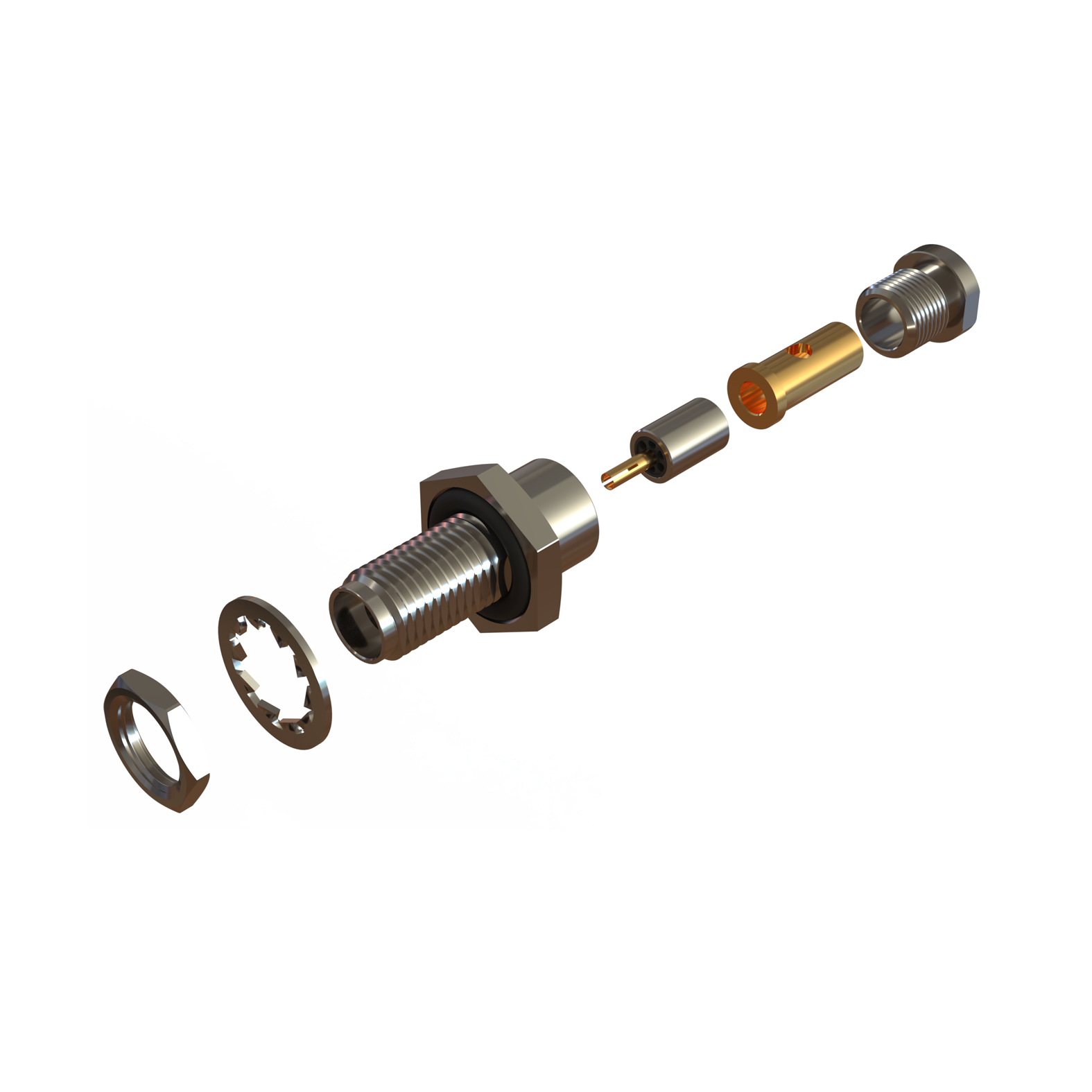

2.92 ( K Type ) 40 GHz EasyFit / Solder Clamp Bulkhead Jack Made From Passivated Stainless Steel For Use With RG405 ( 0.085″ ) Cable
| Electrical Specification | Value |
|---|---|
| Impedance | 50 Ohm |
| Frequency Range | 40GHz |
| Return Loss | -20db @ 40GHz |
| Dielectric Withstand Voltage | 750 Veff |
| Insulation Resistance | 5000 M-Ohm |
| Mechanical Specification | Value |
|---|---|
| Design Standard | IEC 60169-15 |
| RoHS 3 Compliant | Yes |
| Mating Cycles | 250 |
| Contact Retention | 27N min |
| Weight | 5.68g |
| Mating Force | 23Ncn |
| Un-Coupling Force | 23Ncn |
| Environmental Specification | Value |
|---|---|
| Operating Temperature | -55 to +155 Deg C |
| IP Rating ( Mated ) | IP65 |
| Material | Value |
|---|---|
| Centre Contact | Beryllium Copper |
| Outer Contact | Stainless Steel |
| Insulator | PPO |
| Centre Contact Plating | Gold |
| Outer Contact Plating | Passivated |
| Pack Size | 1 |
| Cable Type | Cable Group | Impedance | Jacket O/D mm | Dielectric Material | Dielectric O/D mm | Centre Conductor Material | Centre Conductor O/D mm | Centre Conductor Stranding mm | Shielding Outer Conductor |
|---|---|---|---|---|---|---|---|---|---|
| RG405 (.085") | HA | 50 | 2.2 | PTFE | 1.68 | SCCS | 0.51 | 1/0.51 | Solid Copper Tube |
| Return Loss | 40GHz | -20db |
