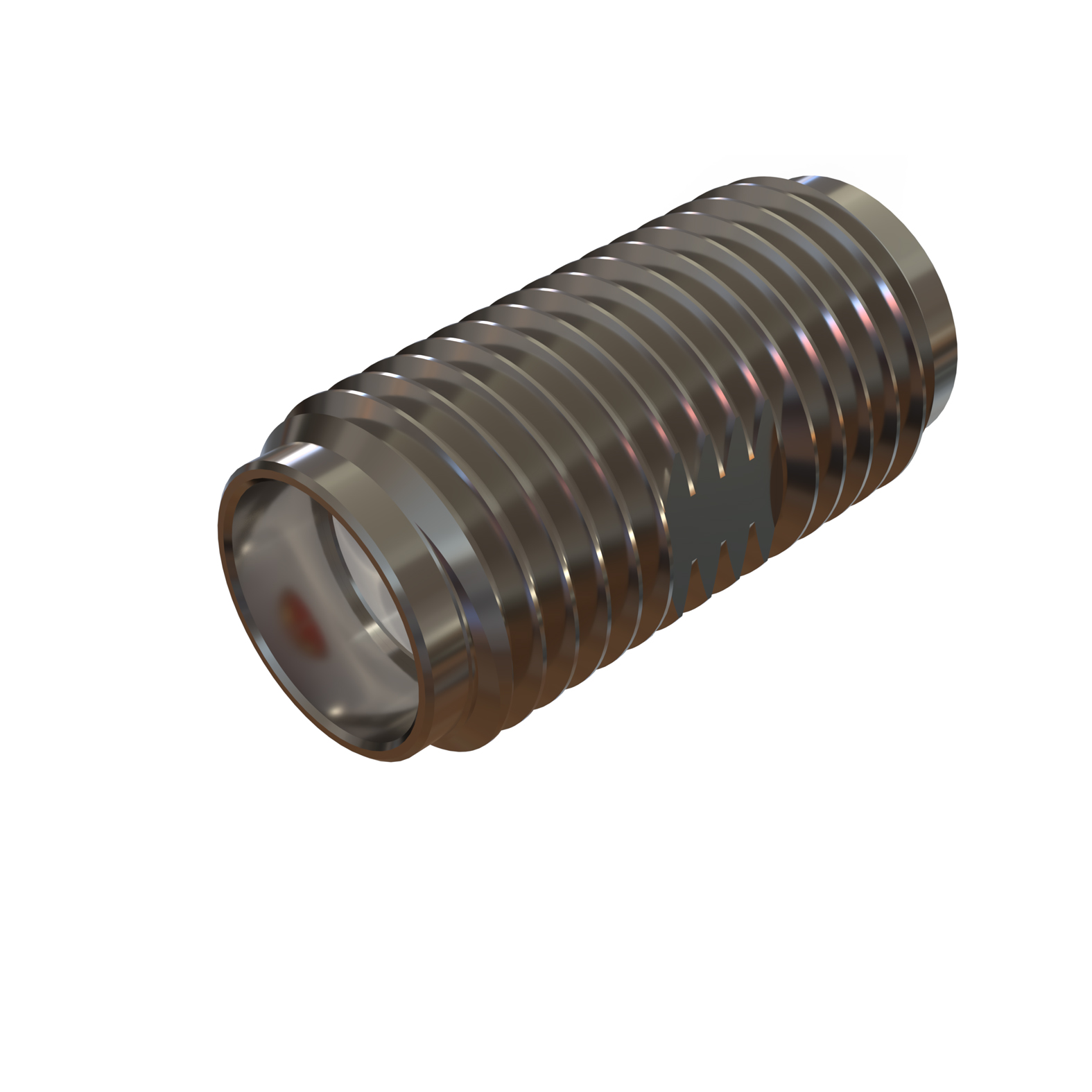

SMA straight jack to jack 20 Ghz adaptor with a passivated stainless steel body and a gold plated centre contact.
| Electrical Specification | Value |
|---|---|
| Impedance | 50 Ohm |
| Frequency Range | 20GHz |
| Dielectric Withstand Voltage | 1000 Veff |
| Insulation Resistance | 5000 M-Ohm |
| Mechanical Specification | Value |
|---|---|
| Design Standard | IEC 60169-15 |
| RoHS 3 Compliant | Yes |
| Mating Cycles | 500 |
| Contact Retention | 27N min |
| Weight | 1.39g |
| Mating Force | 23Ncn |
| Un-Coupling Force | 23Ncn |
| Environmental Specification | Value |
|---|---|
| Operating Temperature | -55 to +155 Deg C |
| IP Rating ( Mated ) | IP65 |
| Material | Value |
|---|---|
| Centre Contact | Beryllium Copper |
| Outer Contact | Stainless Steel |
| Insulator | PTFE |
| Centre Contact Plating | Gold |
| Outer Contact Plating | Passivated |
| Pack Size | 1 |
| Return Loss | 9 Ghz | -24db |
| 16 Ghz | -31db | |
| 21 Ghz | -21db |
