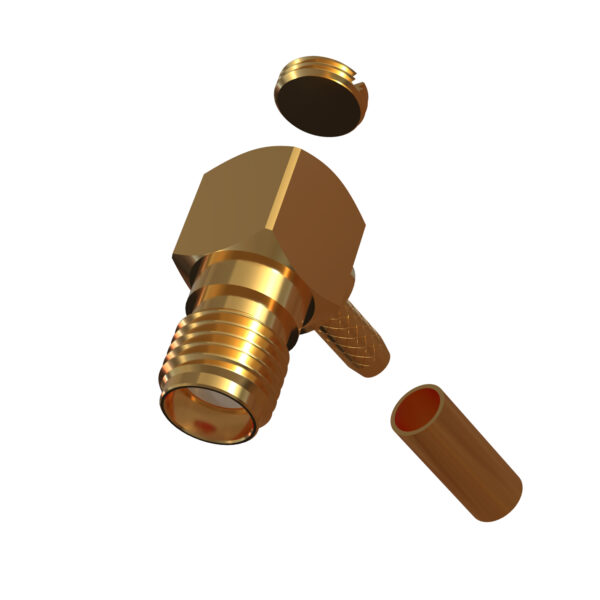

SMA right angle solder crimp jack. Centre contact is soldered and the braid is crimped. Contact and body are gold plated. Suitable for use with RG316 and similar cables in group AD.
| Electrical Specification | Value |
|---|---|
| Impedance | 50 Ohm |
| Frequency Range | 12.5GHz |
| Dielectric Withstand Voltage | 750 Veff |
| Insulation Resistance | 5000 M-Ohm |
| Mechanical Specification | Value |
|---|---|
| Design Standard | IEC 60169-15 |
| RoHS 3 Compliant | Yes |
| Centre Contact Termination | Solder |
| Outer Contact Termination | Crimp |
| Mating Cycles | 100 |
| Contact Retention | 27N min |
| Cable Retention | 100N min |
| Weight | 4.12g |
| Mating Force | 23Ncn |
| Un-Coupling Force | 23Ncn |
| Recommended Coupling Nut Torque | 60Ncm Max |
| Environmental Specification | Value |
|---|---|
| Operating Temperature | -55 to +155 Deg C |
| IP Rating ( Mated ) | IP54 |
| Material | Value |
|---|---|
| Centre Contact | Beryllium Copper |
| Outer Contact | Brass |
| Insulator | PTFE |
| Centre Contact Plating | Gold |
| Outer Contact Plating | Gold |
| Pack Size | 1 |
| Cable Type | Cable Group | Impedance | Jacket O/D mm | Dielectric Material | Dielectric O/D mm | Centre Conductor Material | Centre Conductor O/D mm | Centre Conductor Stranding mm | Shielding Outer Conductor |
|---|---|---|---|---|---|---|---|---|---|
| KX22 | AD | 50 | 2.5 | PTFE | 1.52 | SCCS | 0.51 | 7/0.17 | Copper Braid |
| KX3 | AD | 50 | 2.54 | PE | 1.5 | CCS | 0.48 | 7/0.16 | Copper Braid |
| RG174 | AD | 50 | 2.79 | PE | 1.52 | BCCS | 0.48 | 7/0.16 | Copper Braid |
| RG188 | AD | 50 | 2.67 | PTFE | 1.52 | SCCS | 0.51 | 7/0.17 | Copper Braid |
| RG316 | AD | 50 | 2.49 | PTFE | 1.52 | SCCS | 0.51 | 7/0.17 | Copper Braid |
| Times LMR®100 | AD | 50 | 2.79 | PE | 1.52 | BCCS | 0.46 | 1/0.46 | Foil and Braid |
| URM95 | AD | 50 | 2.3 | PE | 1.5 | SCCS | 0.46 | 1/0.46 | Copper Braid |
| WBC100 | AD | 50 | 2.67 | PE | 1.52 | CCS | 0.46 | 1/0.46 | Foil and Braid |
