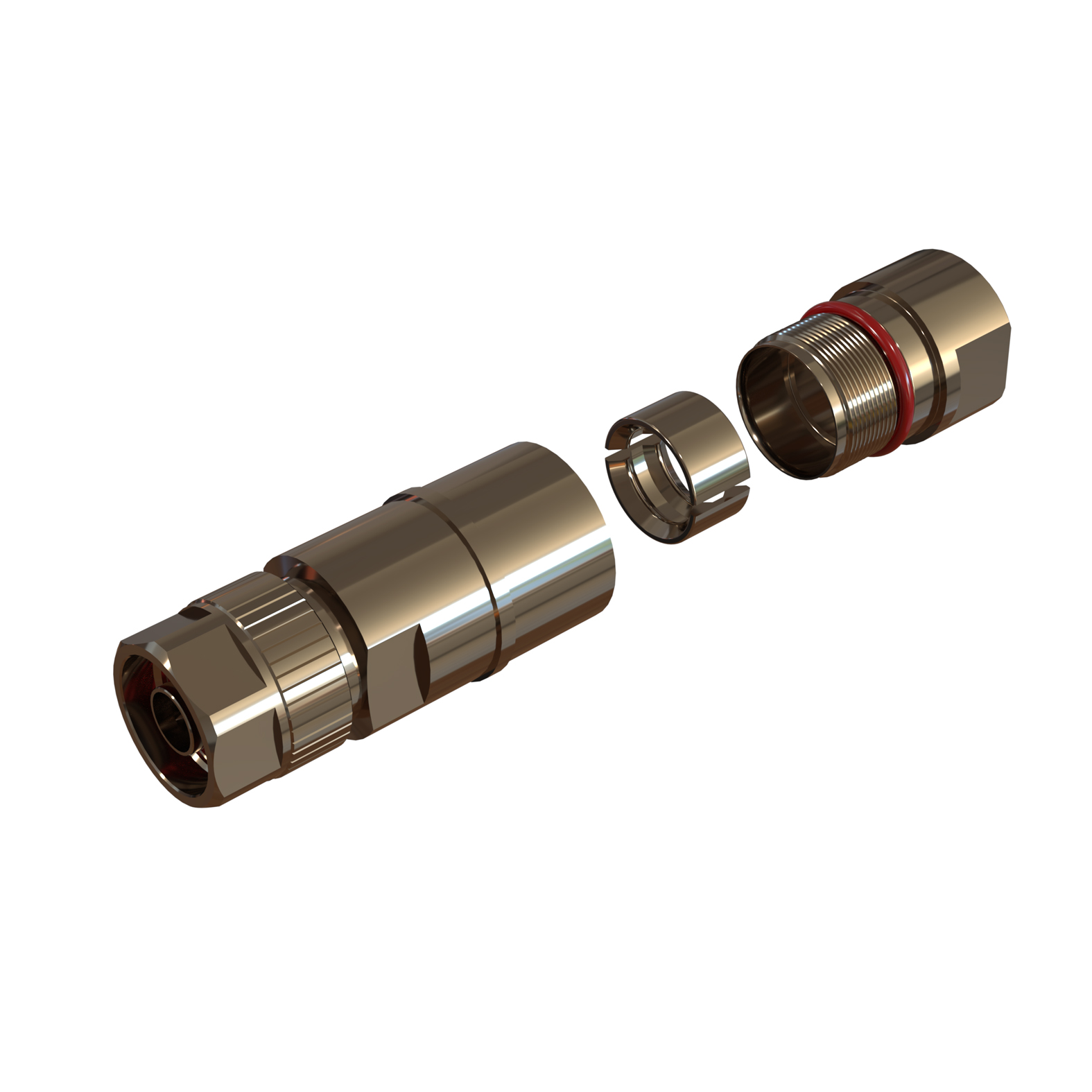

N Type 50 ohm straight Easy Fit ( Push On ) Contact Clamp System Plug. Contact and the outer body are white bronze plated . Suitable for LCF12-50J Helix Cable, Supplied with Adhesive lined black heat shrink
Why we use white bronze with aluminium clad cable and not gold contacts ?
“When gold and aluminium touch in the presence of moisture, aluminium acts as the anode and corrodes rapidly because gold is much more noble on the galvanic scale”
| Electrical Specification | Value |
|---|---|
| Impedance | 50 Ohm |
| Frequency Range | Up to 3GHz |
| Dielectric Withstand Voltage | 1500 Veff |
| Insulation Resistance | 5000 M-Ohm |
| Mechanical Specification | Value |
|---|---|
| Design Standard | IEC 60169-17 |
| RoHS 3 Compliant | Yes |
| Centre Contact Termination | Easy Fit |
| Outer Contact Termination | Clamp |
| Mating Cycles | 500 |
| Contact Retention | 10N min |
| Cable Retention | 100N min |
| Weight | 119.97g |
| Mating Force | 13.6N max |
| Un-Coupling Force | 13.6N max |
| Environmental Specification | Value |
|---|---|
| Operating Temperature | -55 to +155 Deg C |
| IP Rating ( Mated ) | IP65 |
| Material | Value |
|---|---|
| Centre Contact | Phosphor Bronze |
| Outer Contact | Brass |
| Insulator | PTFE |
| Centre Contact Plating | White Bronze |
| Outer Contact Plating | White Bronze |
| Pack Size | 1 |
| Cable Type | Cable Group | Impedance | Jacket O/D mm | Dielectric Material | Dielectric O/D mm | Centre Conductor Material | Centre Conductor O/D mm | Centre Conductor Stranding mm | Shielding Outer Conductor |
|---|---|---|---|---|---|---|---|---|---|
| LCF12-50J 1/2" Cellflex | RD | 50 | 15.8mm | Foam | 11.3mm | Copper Clad Aluminium | 4.8mm | 1/4.8 | Copper Tube |
