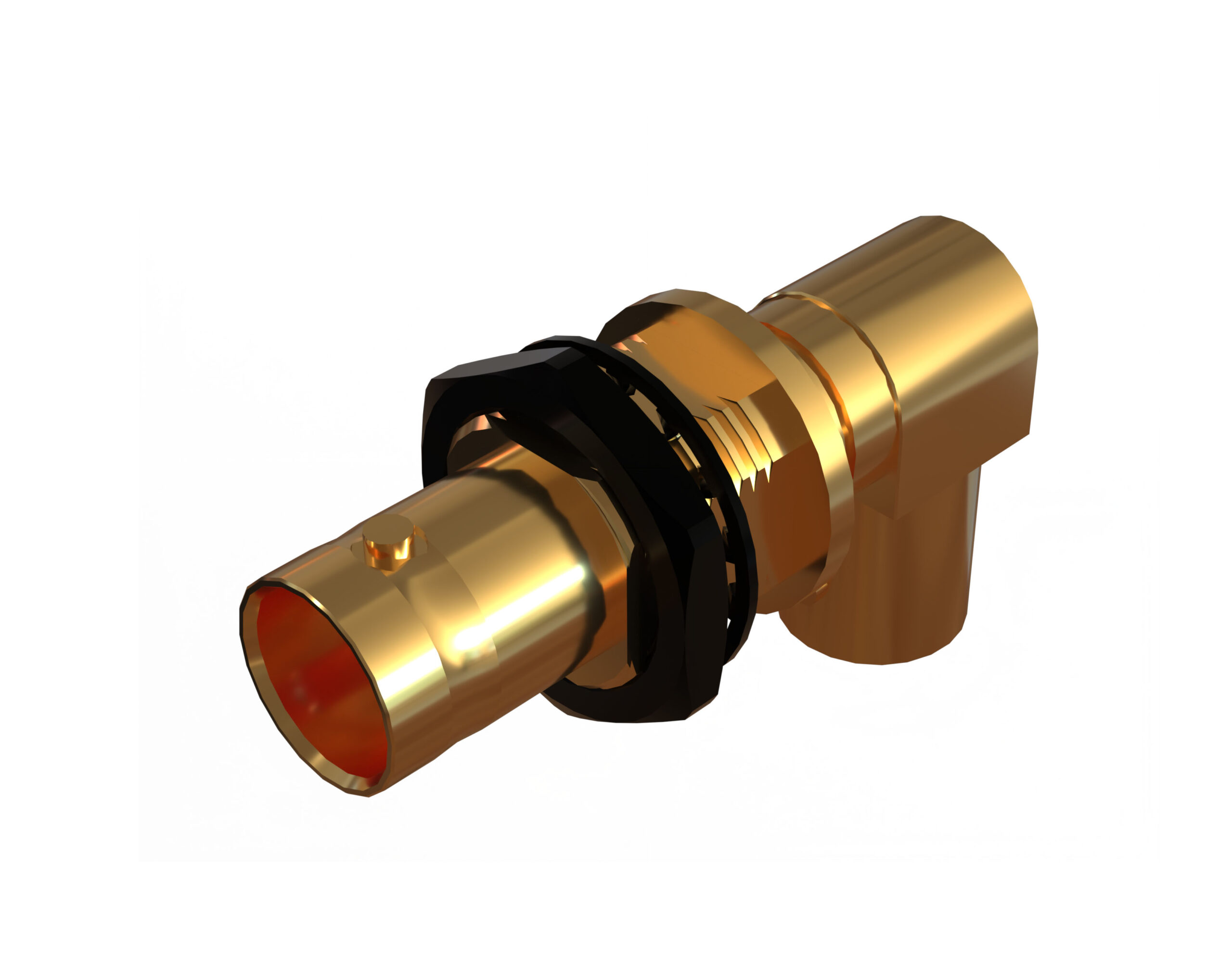

BNC Right Angle Bulkhead Jack to Jack Adaptor, 75 Ohm 6Ghz
BNC 75 ohm Bulkhead Jack to Jack Right Angle adaptor suitable for applications up to 12GHz
Menu
- +44(0)20 8538 9090
BNC 75 ohm Bulkhead Jack to Jack Right Angle adaptor suitable for applications up to 12GHz
| Electrical Specification | Value |
|---|---|
| Impedance | 75 Ohm |
| Frequency Range | Up to 6GHz |
| Dielectric Withstand Voltage | 1500 Veff |
| Insulation Resistance | 5000 M-Ohm |
| Mechanical Specification | Value |
|---|---|
| Design Standard | IEC 61169-8 |
| RoHS 3 Compliant | Yes |
| Mating Cycles | 500 |
| Contact Retention | 10N min |
| Cable Retention | 50N min |
| Weight | 23.71g |
| Mating Force | 13.6N max |
| Un-Coupling Force | 13.6N max |
| Environmental Specification | Value |
|---|---|
| Operating Temperature | -55 to +155 Deg C |
| IP Rating ( Mated ) | IP44 |
| Material | Value |
|---|---|
| Centre Contact | Beryllium Copper |
| Outer Contact | Brass |
| Insulator | PTFE |
| Centre Contact Plating | Gold |
| Outer Contact Plating | Gold |
| Pack Size | 1 |
| Return Loss | 6GHz | -30.83db |
| COAX Direct Product | Yes |
|---|---|
| Connector Style | |
| Contact Termination Centre | |
| Contact Termination Outer | |
| Gender | |
| Impedance |
