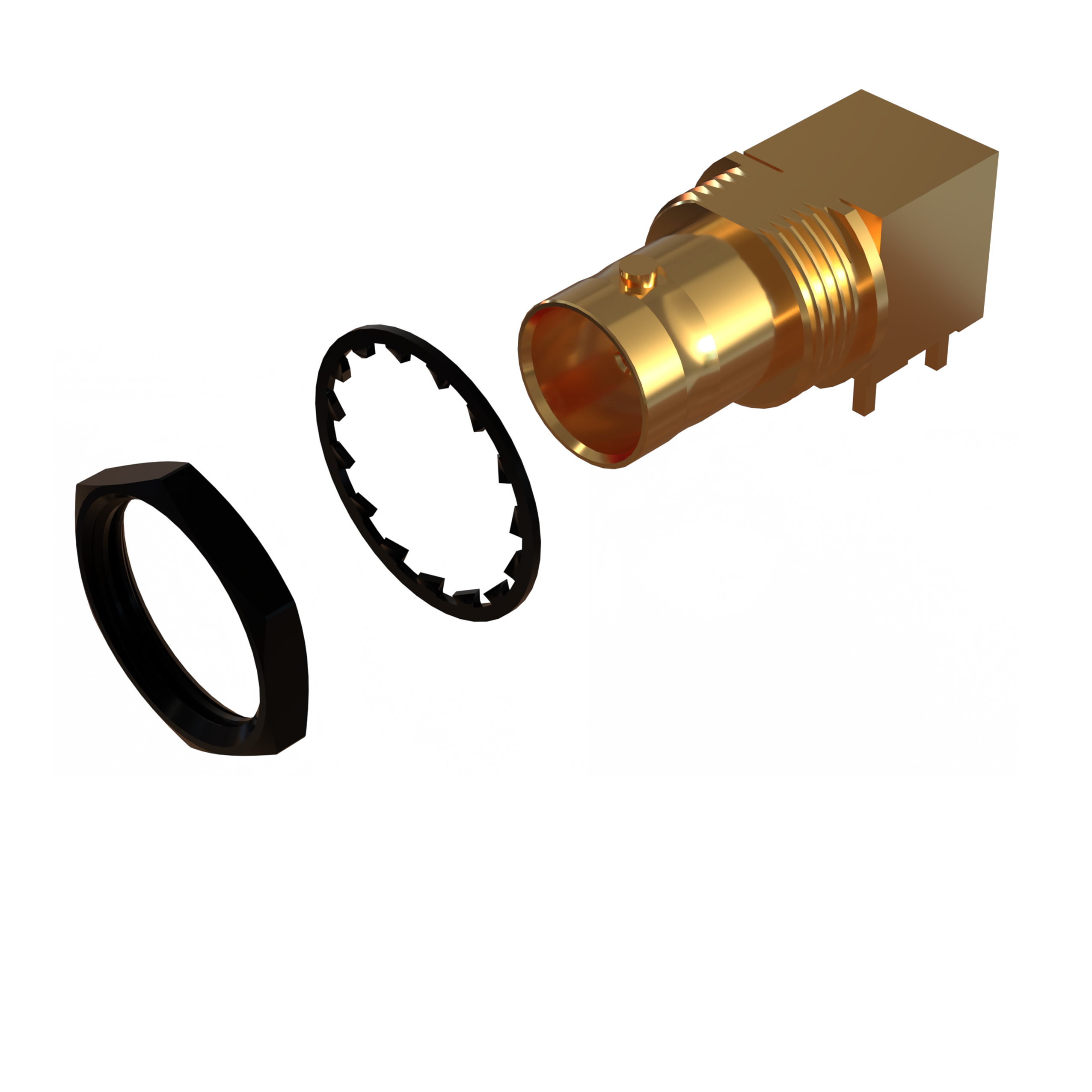

BNC True 75 Ohm 12G Right Angle PCB bulkhead jack for applications up to 12GHz.. Gold plated centre contact .
| Electrical Specification | Value |
|---|---|
| Impedance | 75 Ohm |
| Frequency Range | Up to 12 GHz |
| Dielectric Withstand Voltage | 1500 Veff |
| Insulation Resistance | 5000 M-Ohm |
| Mechanical Specification | Value |
|---|---|
| Design Standard | IEC 61169-8 |
| RoHS 3 Compliant | Yes |
| Centre Contact Termination | Solder |
| Outer Contact Termination | Solder |
| Mating Cycles | 500 |
| Contact Retention | 10N min |
| Cable Retention | 50N min |
| Weight | 13.55g |
| Mating Force | 13.6N max |
| Un-Coupling Force | 13.6N max |
| Environmental Specification | Value |
|---|---|
| Operating Temperature | -55 to +155 Deg C |
| IP Rating ( Mated ) | IP64 |
| Material | Value |
|---|---|
| Centre Contact | Beryllium Copper |
| Outer Contact | Brass |
| Insulator | PTFE |
| Centre Contact Plating | Gold |
| Outer Contact Plating | Gold |
| Outer PCB Contact Plating | Gold |
