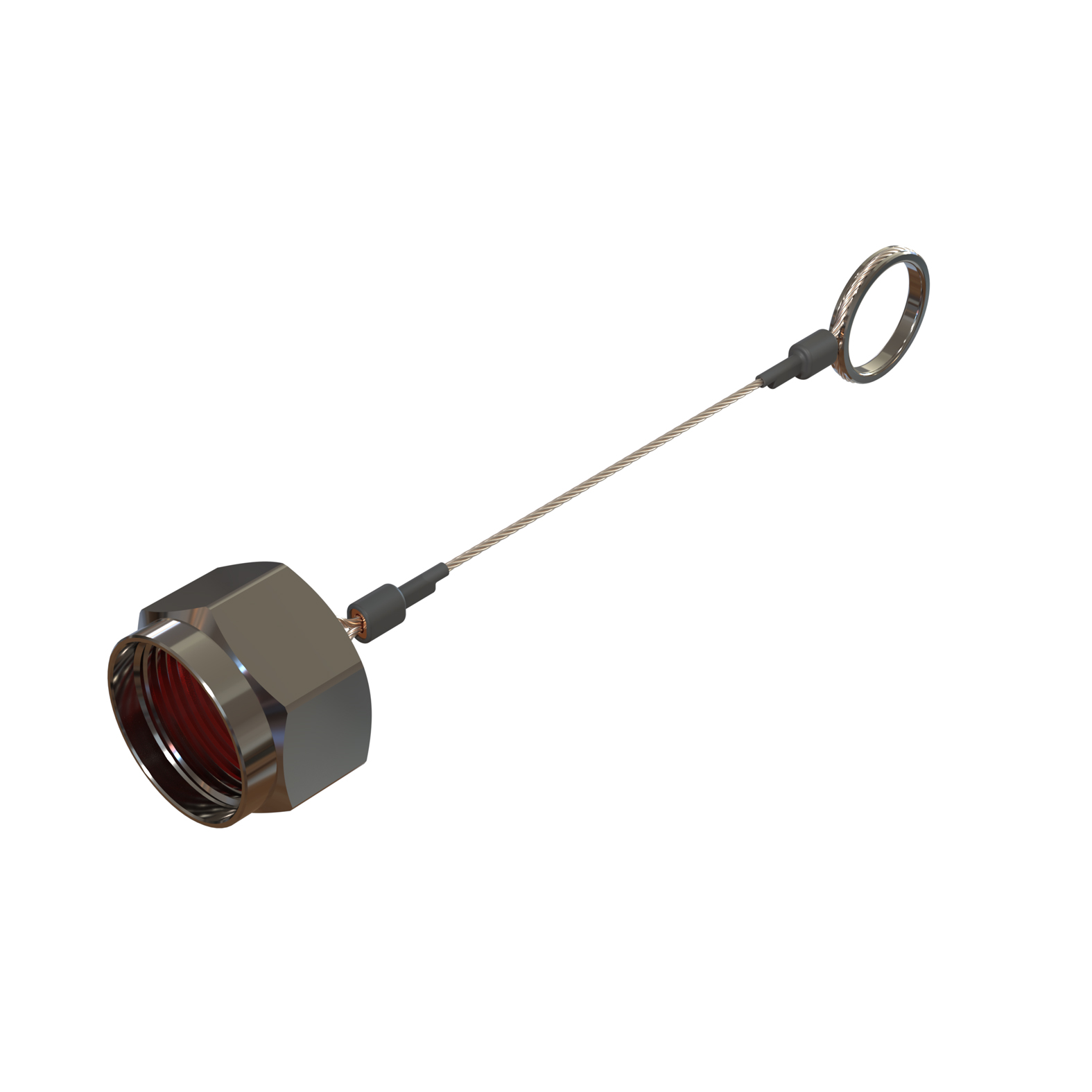

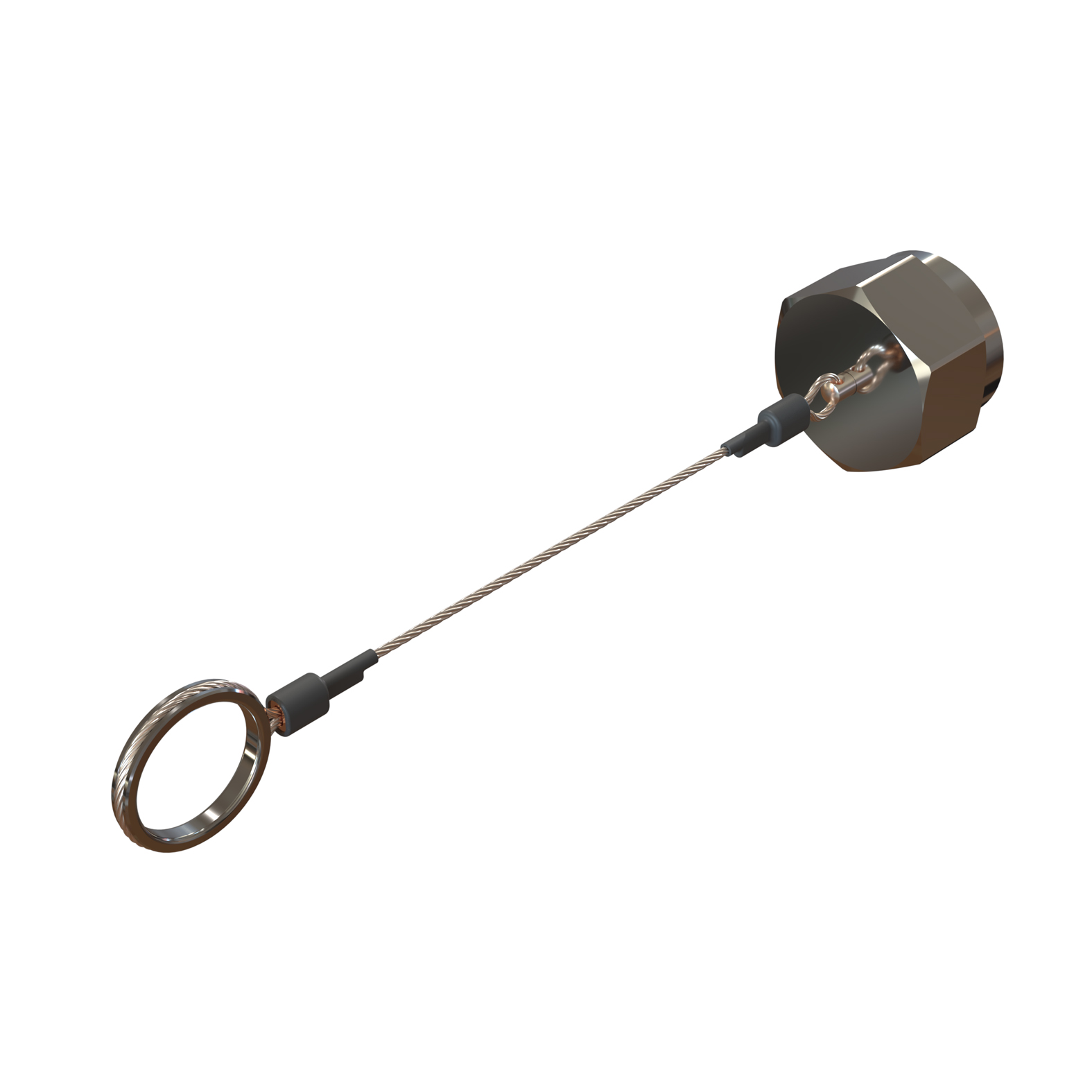

HN Plug Stainless Steel Dust Cap With Cord

PART No. 99-857-HP Categories Connectors, Miscellaneous

HN IP65 Stainless Steel dust cap With 14.35 mm Dia Eyelet & 1mm Dia Stainless steel Cord for protecting a jack connector With a 3/4 x 20 UNEF Thread.

Make an enquiry

Specs

Cables

Assembly

Performance

Accessories

Downloads

Additional Info

Specs

Specifications

Electrical Specification	Value
Dielectric Withstand Voltage	1500 Veff
Insulation Resistance	5000 M-Ohm

Mechanical Specification	Value
Design Standard	IEC 61169-8
RoHS 3 Compliant	Yes

Environmental Specification	Value
Operating Temperature	-55 to +155 Deg C
IP Rating ( Mated )	IP65

Material	Value
Outer Contact	Stainless Steel
Screw Coupling Nut	Stainless Steel
Gasket	Silicon
Pack Size	1

Cables

Cables

Supports the following cables in cable group:

Cable Type	Cable Group	Impedance	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor

Assembly

Assembly

Connectors, Miscellaneous

Performance

Performance

No performance values currently available for this product

Accessories

Accessories

No accessories currently associated with this product

Downloads

Downloads

Step File (Download)

Step File Viewer

General Notes Assembly

General Notes Recycling

Additional Info

Additional information

COAX Direct Product	Yes
Connector Style	Straight
Contact Termination Centre	Other
Contact Termination Outer	Other
Gender	Plug
Impedance	Other
