HN Jack Stainless Steel Dust Cap With 16 mm ID Eyelet & Cord

PART No. 99-856-2-HP Categories ,
View Datasheet

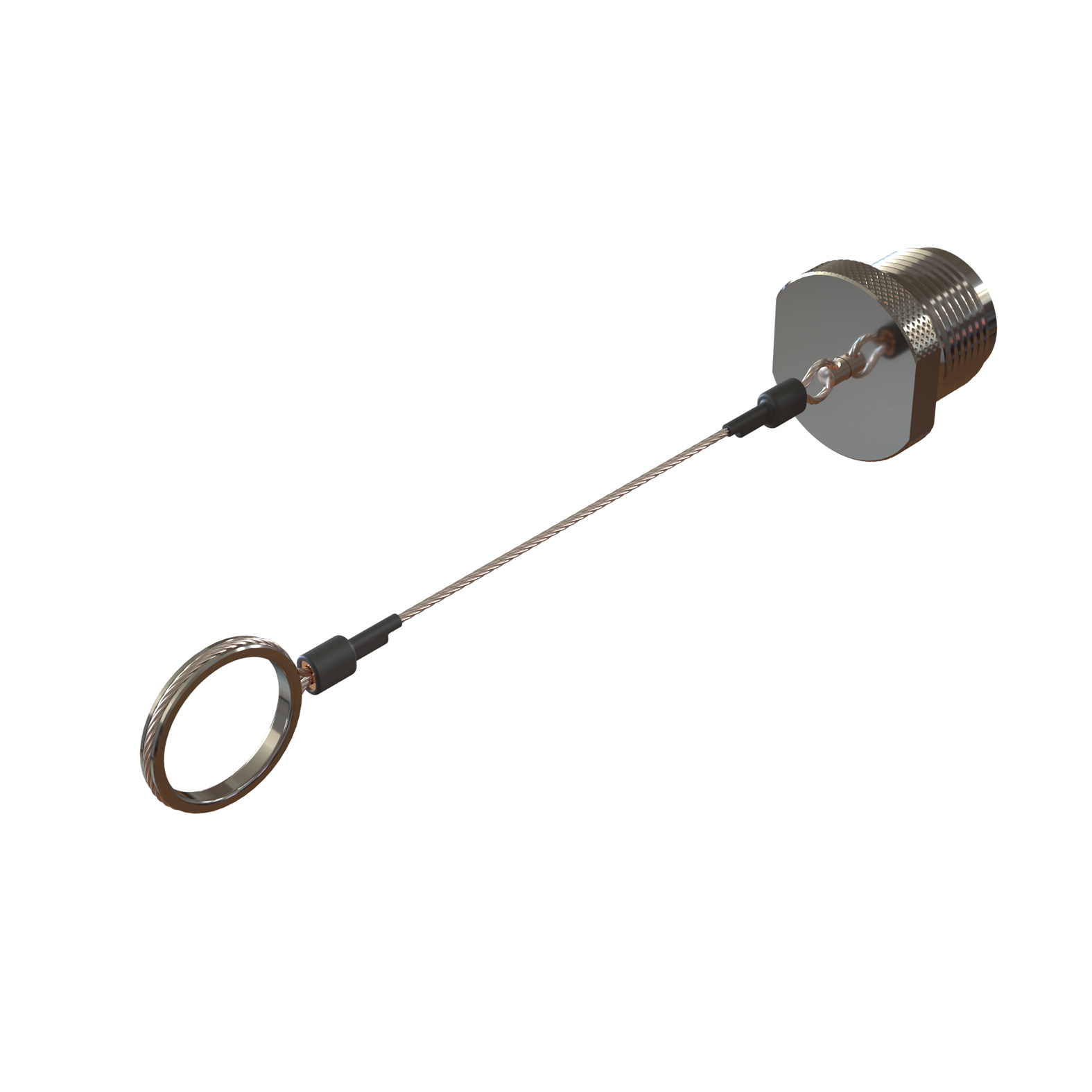

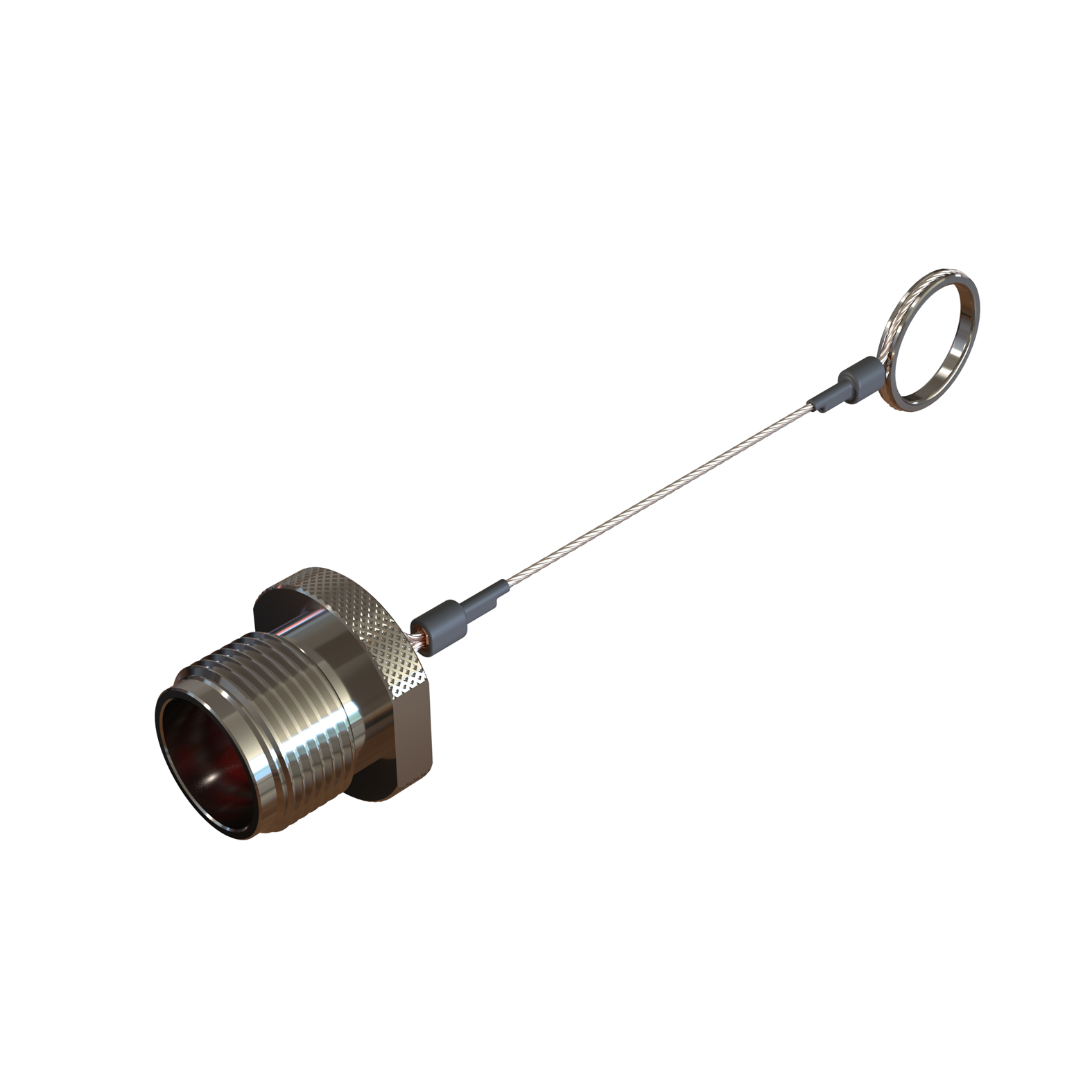

HN IP65 Stainless Steel dust cap With 16 mm Dia Eyelet & 1mm Dia Stainless steel Cord for protecting a Plug connector With a 3/4 x 20 UNEF Thread.



Make an enquiry

Specs

Specifications

Electrical SpecificationValue
Dielectric Withstand Voltage1500 Veff
Insulation Resistance5000 M-Ohm

Mechanical SpecificationValue
Design StandardIEC 61169-8
RoHS 3 CompliantYes

Environmental SpecificationValue
Operating Temperature-55 to +155 Deg C
IP Rating ( Mated )IP65

MaterialValue
Outer ContactStainless Steel
Screw Coupling NutStainless Steel
GasketSilicon
Pack Size1

Cables

Cables

Supports the following cables in cable group:

Cable TypeCable GroupImpedanceJacket O/D mmDielectric MaterialDielectric O/D mmCentre Conductor MaterialCentre Conductor O/D mmCentre Conductor Stranding mmShielding Outer Conductor

Assembly

Assembly

General Notes
,

Performance

Performance

No performance values currently available for this product

Accessories

Accessories

No accessories currently associated with this product

Downloads

Downloads

Datasheet
Step File (Download)
Step File Viewer
General Notes Assembly
General Notes Recycling

Additional Info

Additional information

COAX Direct Product

Yes
Connector Style

Contact Termination Centre

Contact Termination Outer

Gender

Impedance
