96-330K- Ratchet Crimp Tool Kit

PART No. 96-330K Category Tooling

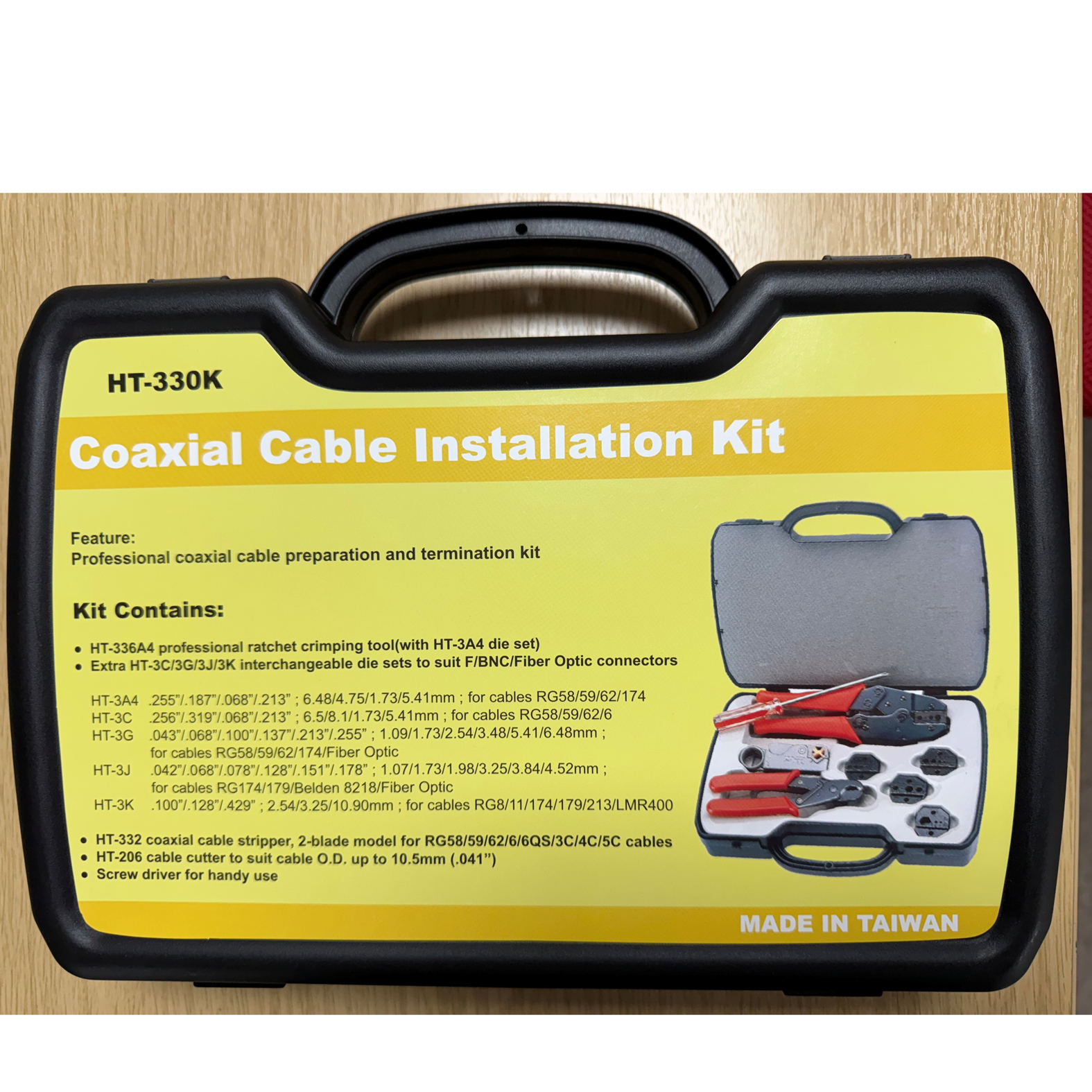

Tool Kit includes a Ratchet Crimp tool with 5 interchangable crimp dies, a Rotary Cable Stripper to strip cables like RG58 and RG59 and a Cable Cutter to cut cable upto a max of 10.5mm dia. All Supplied in a rugged tool box,
The kit includes everything you need to terminate the majority of coaxial cable connectors.
The 5 interchangablere die sets cover 15 different hexagon and square sizes,

1.07 mm / 0.042" A/F Square
1.09 mm / 0.043" A/F Square
1.72 mm / 0.068" A/F Hex
1.98 mm / 0.078" A/F Hex
2.54 mm / 0.100" A/F Hex
3.25 mm / 0.128" A/F Hex
3.48 mm / 0.137" A/F Hex
3.84 mm / 0.151" A/F Hex
4.52 mm / 0.178" A/F Hex
4.75 mm / 0.187" A/F Hex
5.41 mm / 0.213" A/F Hex
5.59 mm / 0.220" A/F Hex
6.48 mm / 0.255" A/F Hex
6.50 mm / 0.256" A/F Hex
8.1 mm / 0.319" A/F Hex
10.9 mm / 0.429" A/F Hex
