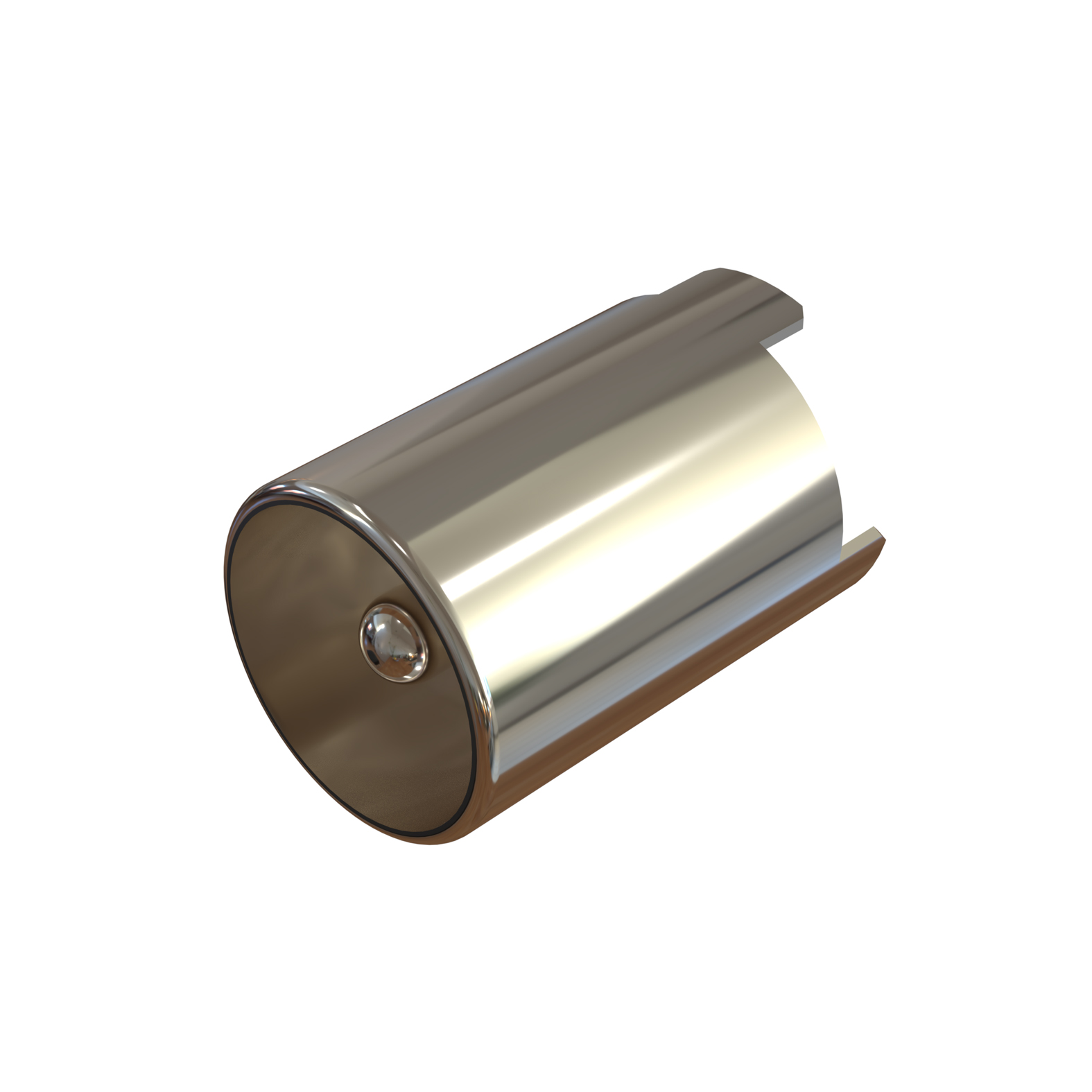

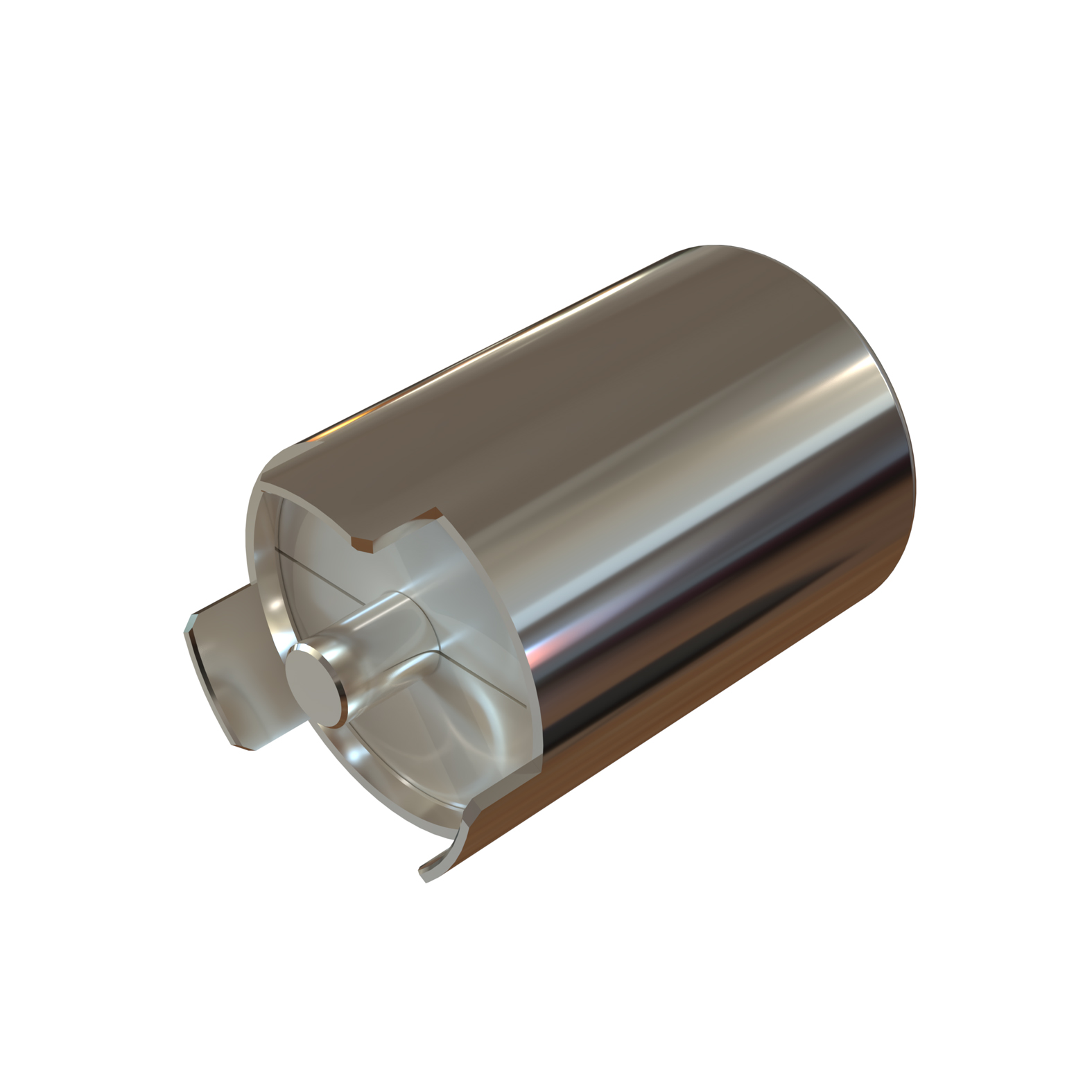

Type 9.52 Straight PCB Mounted Jack Tin Plated Outer and Inner Contacts
| Electrical Specification | Value |
|---|---|
| Impedance | 50 Ohm |
| Frequency Range | DC 3GHz |
| Dielectric Withstand Voltage | 500 Veff |
| Insulation Resistance | 5000 M-Ohm |
| Mechanical Specification | Value |
|---|---|
| RoHS 3 Compliant | Yes |
| Centre Contact Termination | Solder |
| Outer Contact Termination | Solder |
| Mating Cycles | 500 |
| Weight | 2.18g |
| Environmental Specification | Value |
|---|---|
| Operating Temperature | -55 to +155 Deg C |
| Material | Value |
|---|---|
| Center Contact | Brass |
| Outer Contact | Brass |
| Insulator | PTFE |
| PCB Mount Body | Brass |
| Center Contact Plating | Tin |
| Outer Contact Plating | Tin |
