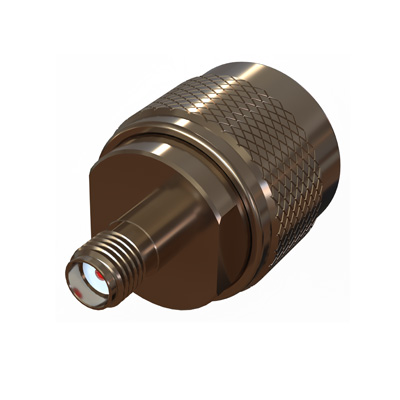

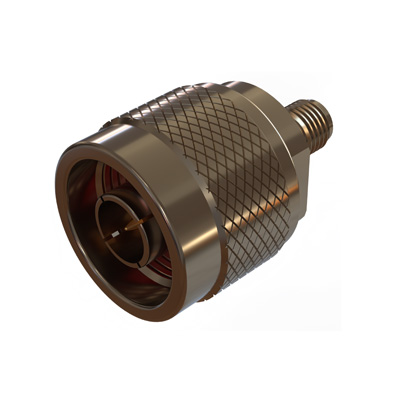

N Type Plug to SMA Jack Straight Adaptor

PART No. 74-2530-511 Categories ,

Inter-Series adaptor for connection between different connector families. N Type Plug to SMA Jack Straight Adaptor

Make an enquiry
Specs

Specifications

Electrical SpecificationValue
Impedance50 Ohm
Frequency Range0-11 GHz
Dielectric Withstand Voltage1500 Veff
Insulation Resistance5000 M-Ohm

Mechanical SpecificationValue
RoHS 3 CompliantYes
Weight35g

Environmental SpecificationValue
Operating Temperature-55 to +155 Deg C
IP Rating ( Mated )IP64

MaterialValue
Centre ContactPhosphor Bronze
Outer ContactBrass
InsulatorPTFE
Centre Contact PlatingGold
Outer Contact PlatingNickel
Pack Size1

Cables

Cables

Supports cables in cable group:

Assembly

Assembly

General Notes
,

Performance

Performance

No performance values currently available for this product

Accessories

Accessories

No accessories currently associated with this product

Downloads

Downloads

Interface Dimensions
Interface Dimensions 2 (inter-series adaptors)
No step file for this product
General Notes Assembly
General Notes Recycling

Additional Info

Additional information

Connector Style

Contact Termination Centre

Contact Termination Outer

Gender

Impedance
