microMUSA Plug to BNC Jack 12G Adaptor 2 Way Block

PART No. 74-1064-544-B126-3 Categories Connectors, Inter Series Adaptors
Download Outline PDF

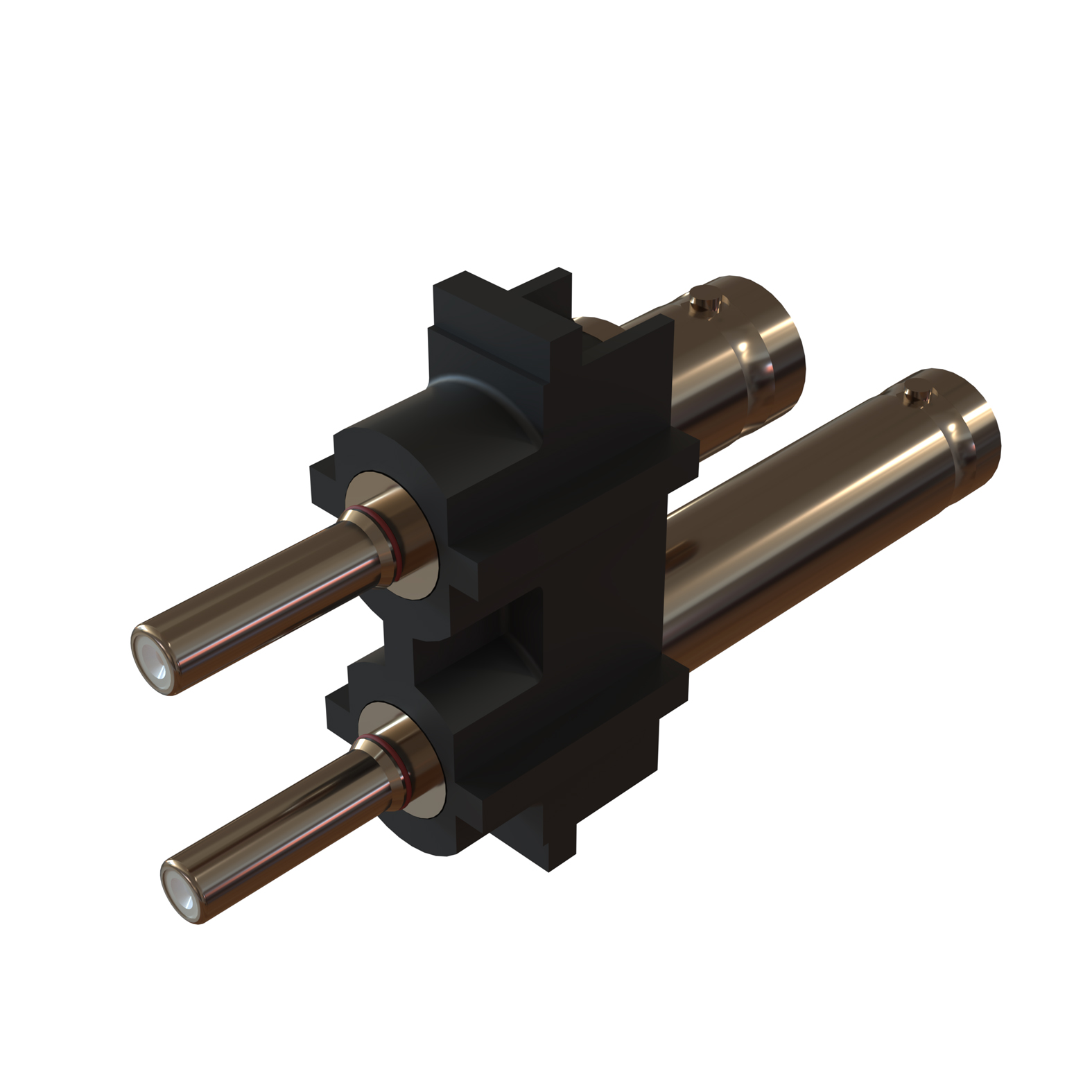

microMUSA Plug to Micro BNC Jack 12G Low Density 2 Way Adaptor Block
The 12G “microMUSA” panels are , 32-way configurations. Both use the same U-links. The 12G performance of the “microMUSA” connector system exceeds the requirements of SMPTE ST 2082-1 making it suitable for composite and component video, 270 Mb/s SDI, uncompressed 1080i or 1080p HD-SDI video and 4K UHD (2160P60) video up to 12GHz

Make an enquiry
Specs
Cables
Assembly
Performance
Accessories
Downloads
Additional Info
Specs

Specifications

Electrical SpecificationValue
Impedance75 Ohm
Frequency RangeUp to 18GHz
Dielectric Withstand Voltage1000 Veff
Insulation Resistance10000 M-Ohm

Mechanical SpecificationValue
RoHS 3 CompliantYes
Mating Cycles Micro Musa5000
Mating Cycles BNC500
Weight32.21g
Mating Force10N max
Un-Coupling Force25N max

Environmental SpecificationValue
Operating Temperature-30 to +70 Deg C
IP Rating ( Mated )IP30

MaterialValue
Centre ContactBeryllium Copper
Outer ContactPhosphor Bronze
InsulatorPTFE
Centre Contact PlatingGold
Outer Contact PlatingNickel
BlockPOM
Pack Size1

Cables

Cables

Supports cables in cable group:

Assembly

Assembly

General Notes
Connectors, Inter Series Adaptors

Performance

Performance

Return Loss3Ghz-34.08 db
6Ghz-22.1 db
9Ghz-20.16 db
12Ghz-24.03 db

Accessories

Accessories

No accessories currently associated with this product

Downloads

Downloads

Outline PDF
Datasheet
Performance Data
No step file for this product
General Notes Assembly
General Notes Recycling

Additional Info

Additional information

Connector Style

Other

Contact Termination Centre

Other

Contact Termination Outer

Other

Gender

Adaptor

Impedance

75ohm-12GHz
