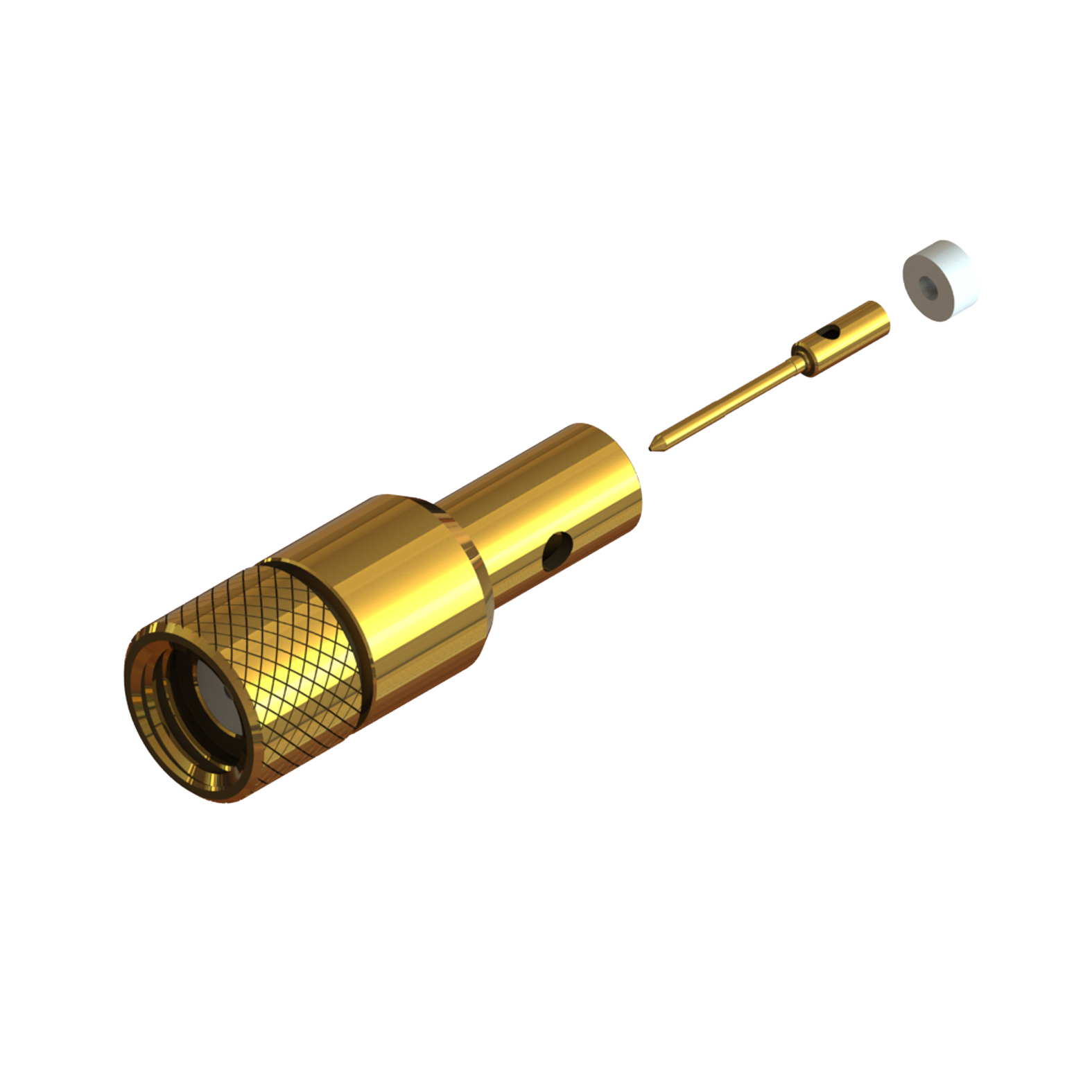

1/4-32 Microdot 93 Ohm Straight Solder/ Solder Plug. Centre contact and body are soldered. Contact and body are gold plated. Suitable for use with RG402 (0.141″) semi rigid and similar cables in group HB.
| Electrical Specification | Value |
|---|---|
| Impedance | 93 Ohm |
| Frequency Range | 0-2 GHz |
| Dielectric Withstand Voltage | 1500 Veff |
| Insulation Resistance | 5000 M-Ohm |
| Mating Cycles | 500 |
| Mechanical Specification | Value |
|---|---|
| RoHS 3 Compliant | Yes |
| Weight | 5.51g |
| Environmental Specification | Value |
|---|---|
| Operating Temperature | -55 to +155 Deg C |
| IP Rating ( Mated ) | IP64 |
| Material | Value |
|---|---|
| Centre Contact | Brass |
| Outer Contact | Brass |
| Insulator | PTFE |
| Centre Contact Plating | Gold |
| Outer Contact Plating | Gold |
| Pack Size | 1 |
