SSMA Stainless Steel 1.6 PCB End Launch Bulkhead Jack

PART No. 36-462-DS-1.6 Categories ,
View Datasheet

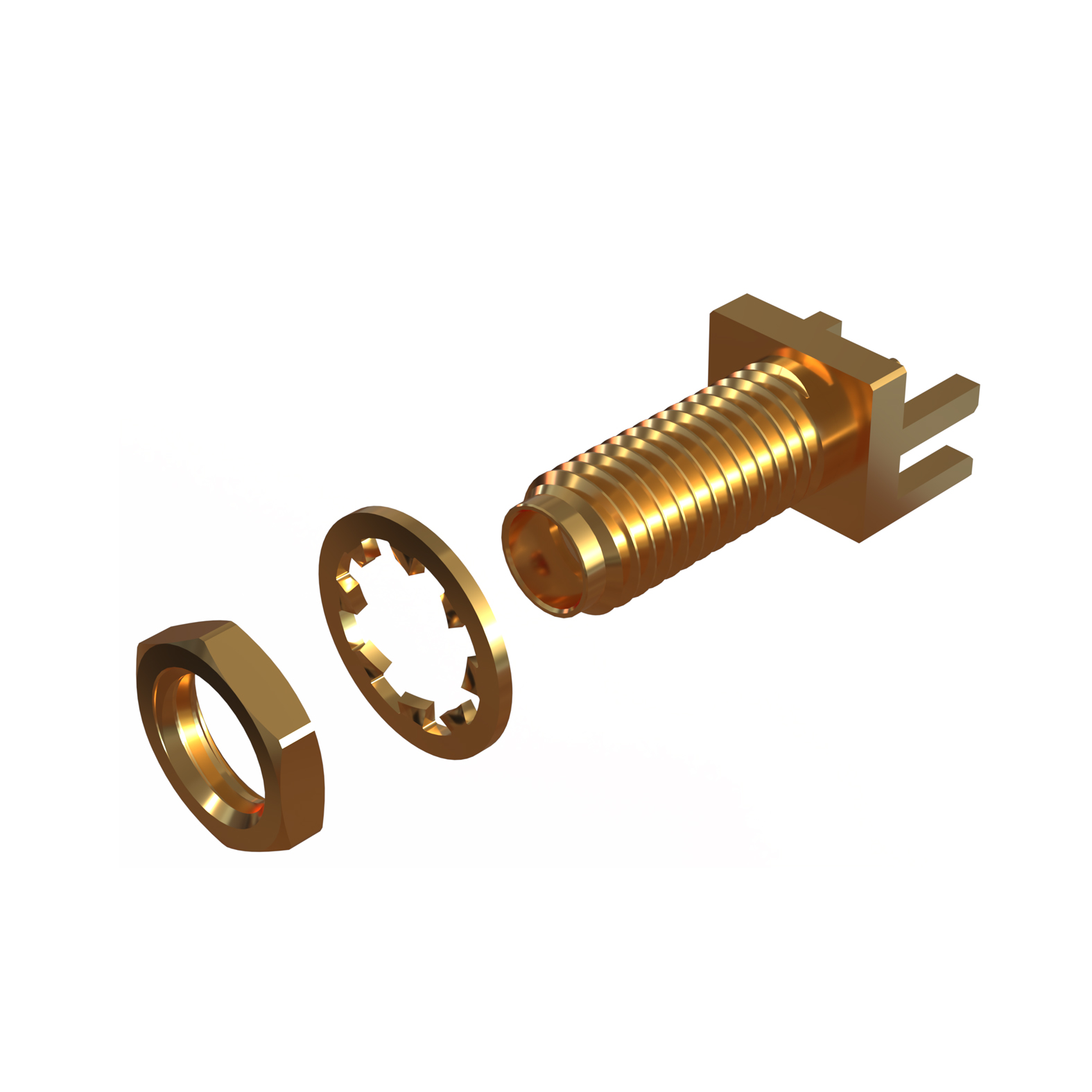

SSMA Gold Plated Stainless Steel End Launch Bulkhead Jack to Fit a 1.06 mm PCB



Make an enquiry

Specs

Specifications

Electrical SpecificationValue
Impedance50 Ohm
RoHS 3 CompliantYes
Centre Contact TerminationSolder
Outer Contact TerminationN/A
Weight1.83g

Mechanical SpecificationValue
Operating Temperature-55 to +155 Deg C
Inner ContactGold Plated Beryllium Copper
Outer ContactGold Plated Stainless Steel
InsulaterPTFE

Cables

Cables

Supports the following cables in cable group:
