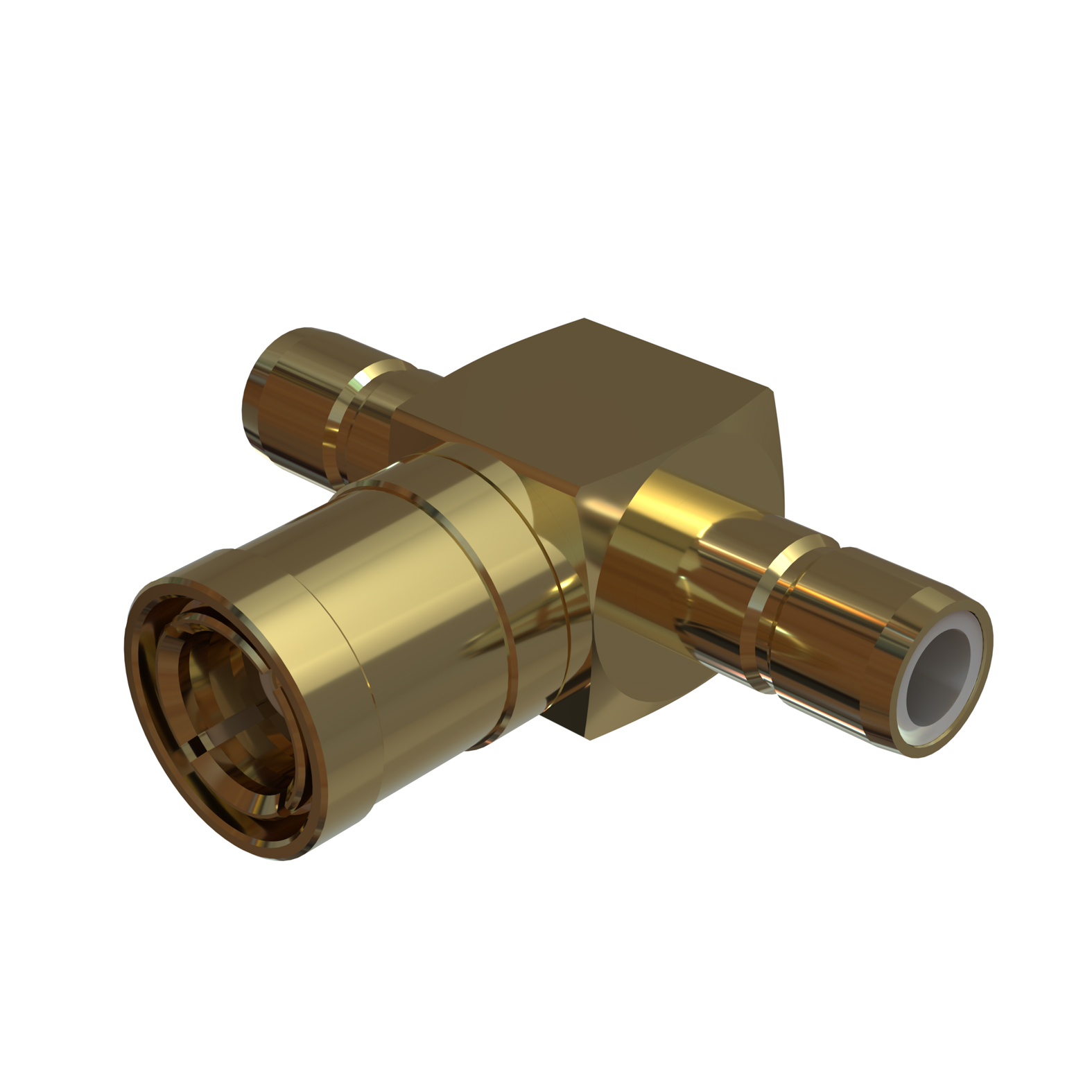

SMB T Adaptor ( Jack / Plug / Jack )
SMB “T” adaptor with jack / plug / jack connections. Body and centre contact are gold plated.
Menu
- +44(0)20 8538 9090
SMB “T” adaptor with jack / plug / jack connections. Body and centre contact are gold plated.
| Electrical Specification | Value |
|---|---|
| Impedance | 50 Ohm |
| Frequency Range | 4GHz |
| Dielectric Withstand Voltage | 500 Veff |
| Insulation Resistance | 1000 M-Ohm |
| Mechanical Specification | Value |
|---|---|
| Design Standard | IEC 60169-10 |
| RoHS 3 Compliant | Yes |
| Mating Cycles | 250 |
| Contact Retention | 10N min |
| Mating Force | 62N max |
| Un-Coupling Force | 62N max |
| Environmental Specification | Value |
|---|---|
| Operating Temperature | -55 to +155 Deg C |
| IP Rating ( Mated ) | IP30 |
| Material | Value |
|---|---|
| Centre Contact | Phosphor Bronze |
| Outer Contact | Phosphor Bronze |
| Insulator | PTFE |
| Centre Contact Plating | Gold |
| Outer Contact Plating | Gold |
| Pack Size | 1 |
