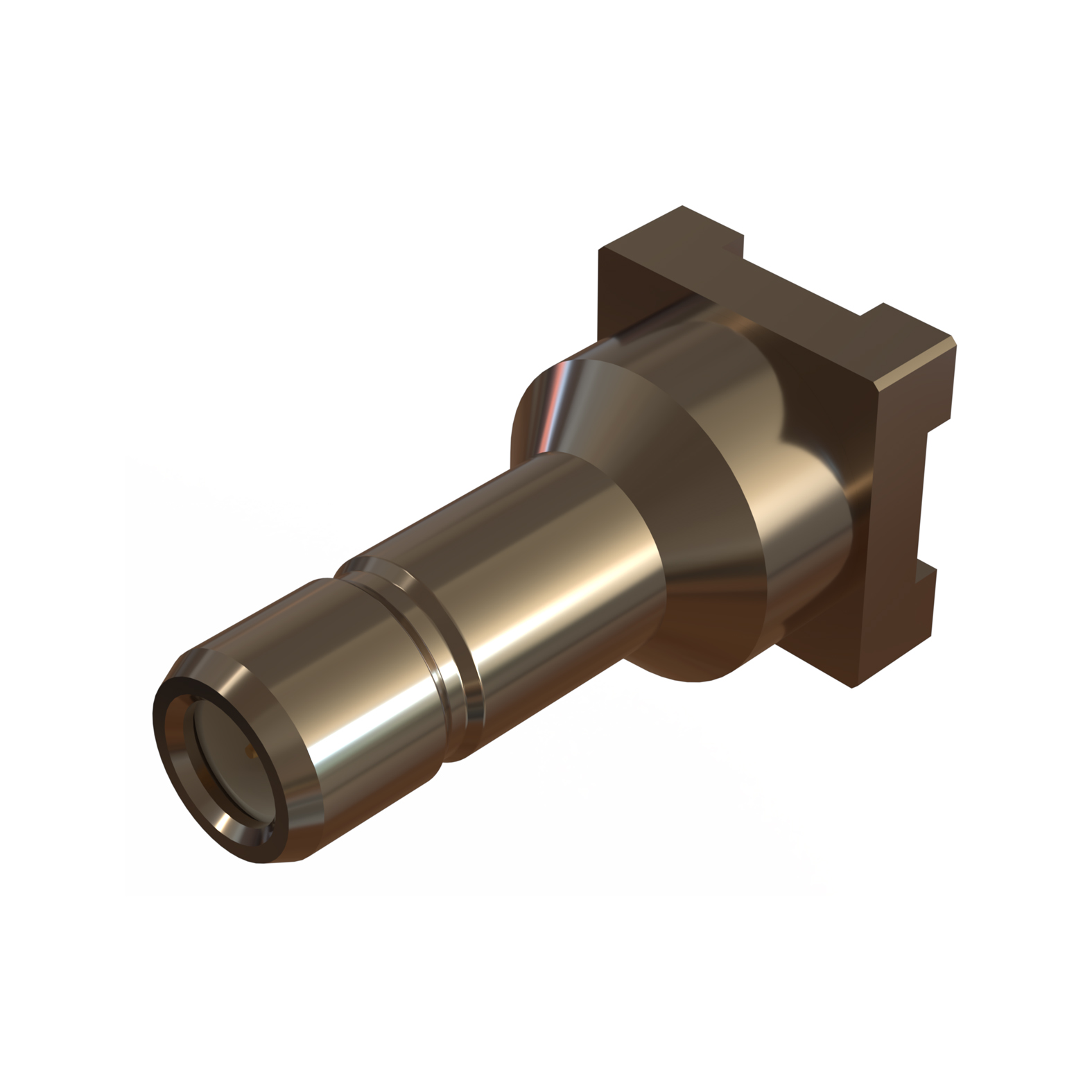

SMB Straight SMT PCB Jack

PART No. 32-458-B3 Categories ,
View Datasheet

SMB 50 ohm straight Surface Mount PCB jack. nickel plated solder body, with gold plated solder centre contact.



Make an enquiry

Specs

Specifications

Electrical SpecificationValue
Impedance50 Ohm
Frequency Range4.5GHz
Dielectric Withstand Voltage500 Veff
Insulation Resistance1000 M-Ohm

Mechanical SpecificationValue
Design StandardIEC 60169-10
RoHS 3 CompliantYes
Centre Contact TerminationSolder
Outer Contact TerminationSolder
Mating Cycles500
Contact Retention10N min
Weight1.52g
Mating Force62N max
Un-Coupling Force62N max

Environmental SpecificationValue
Operating Temperature-55 to +155 Deg C
IP Rating ( Mated )IP40

MaterialValue
Centre ContactBrass
Outer ContactBrass
InsulatorPTFE
Centre Contact PlatingGold
Outer Contact PlatingNickel
Pack Size1
