Home / Products / Connectors / SMA / SMA Jacks / SMA Jack Protective Cap With Cord ( Black Finish )

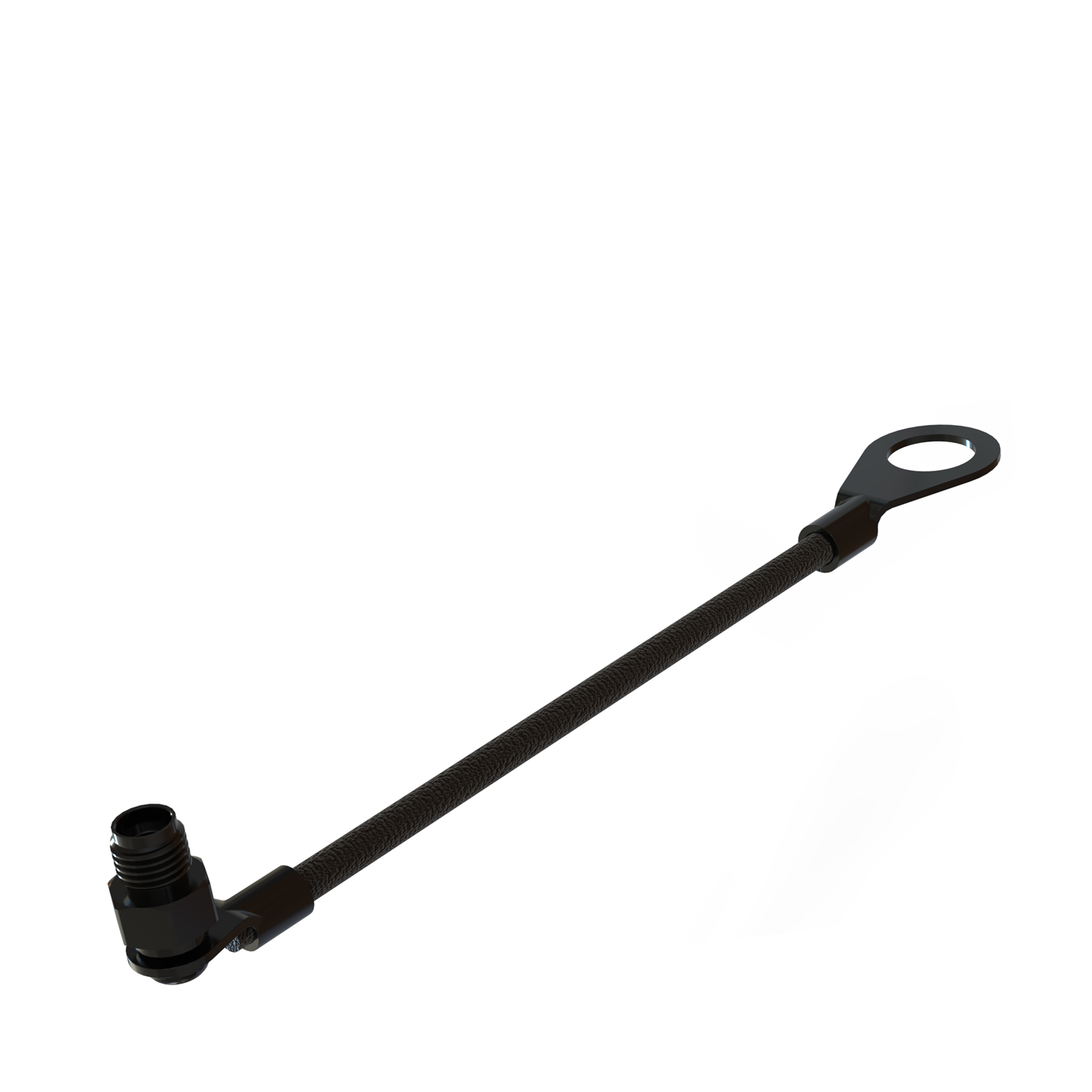

SMA Jack Protective Cap With Cord ( Black Finish )

PART No. 30-857-Y Categories Connectors, SMA, SMA Jacks
View Datasheet

SMA IP66 Mated dust cap for protecting a Plug connector with a 75 mm black cord with a 11.2 mm Eyelet. Finished in a black non-reflective finish



Make an enquiry

Specs
Cables
Assembly
Performance
Accessories
Downloads
Additional Info
Specs

Specifications

Mechanical SpecificationValue
Design StandardIEC 61169-8
RoHS 3 CompliantYes
Mating Cycles500
Contact Retention27N min
Mating Force6.6Ncm max
Un-Coupling Force6.6Ncm max
Weight7.67g
Recommended Coupling Nut Torque170Ncm Max

Environmental SpecificationValue
Operating Temperature-55 to +155 Deg C
IP Rating ( Mated )IP66

MaterialValue
Outer ContactBrass
Outer Contact PlatingBlack Nickel
Pack Size1

Cables

Cables

Supports the following cables in cable group:

Cable TypeCable GroupImpedanceJacket O/D mmDielectric MaterialDielectric O/D mmCentre Conductor MaterialCentre Conductor O/D mmCentre Conductor Stranding mmShielding Outer Conductor

Assembly

Assembly

General Notes
Connectors, SMA, SMA Jacks

Performance

Performance

No performance values currently available for this product

Accessories

Accessories

No accessories currently associated with this product

Downloads

Downloads

Outline PDF
Interface Dimensions
Datasheet
No step file for this product
General Notes Assembly
General Notes Recycling

Additional Info

Additional information

COAX Direct Product

Yes

Connector Style

Straight

Contact Termination Centre

Other

Contact Termination Outer

Other

Gender

Jack

Impedance

Other
