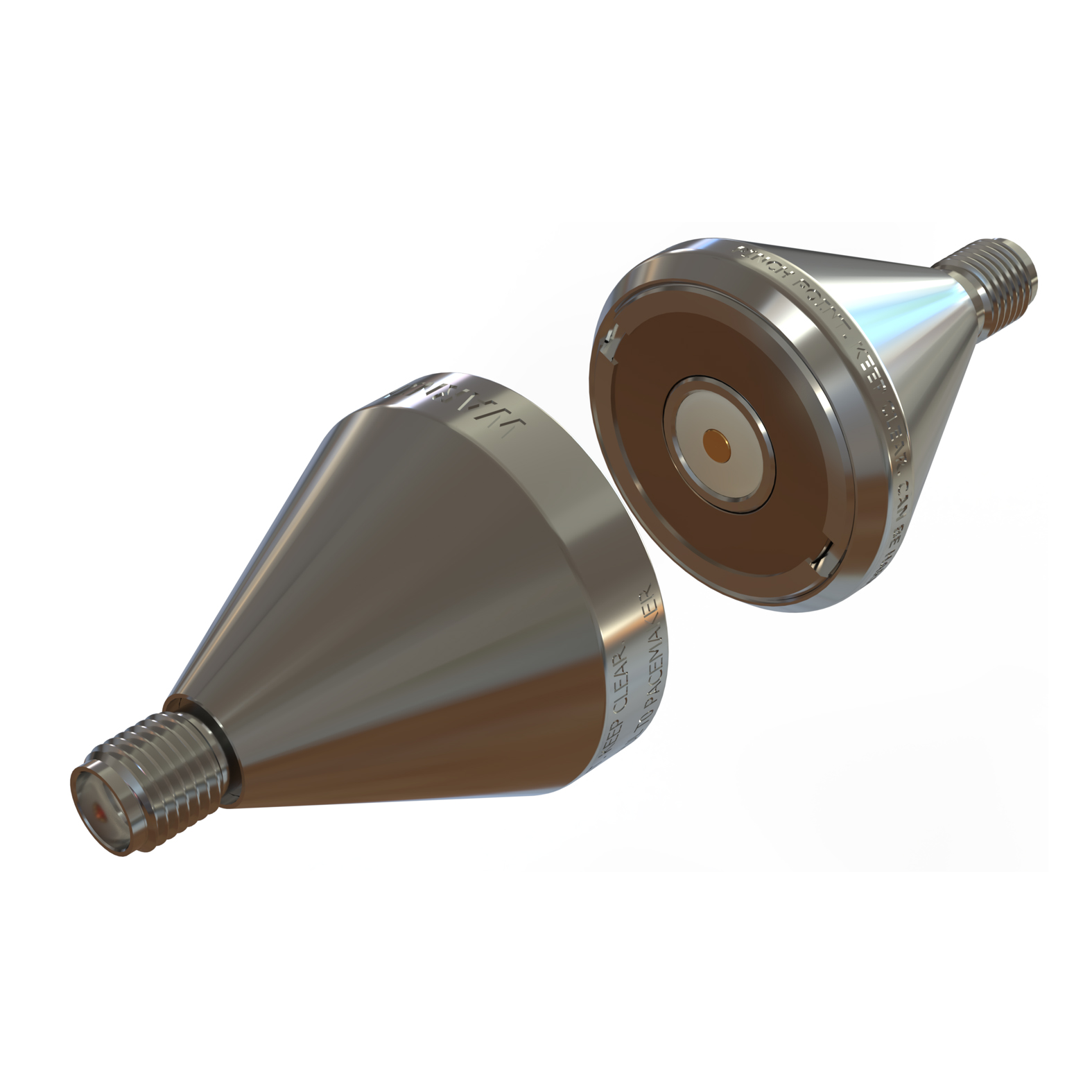

SMA straight Jack to Jack 2 Part Magnetic Adaptor, This Magnetic Coupler Has Sprung Loaded Center and Outer Contacts for Easy Mating and Un-Coupling High Number of Cycles with a Strong Magnet Pull of 8.51 lb
| Electrical Specification | Value |
|---|---|
| Impedance | 50 Ohm |
| Frequency Range | 6GHz |
| Dielectric Withstand Voltage | 750 Veff |
| Insulation Resistance | 5000 M-Ohm |
| Magnet Force | 8.51 lb |
| Mechanical Specification | Value |
|---|---|
| Design Standard | IEC 60169-15 |
| RoHS 3 Compliant | Yes |
| Mating Cycles | 250 |
| Contact Retention | 27N min |
| Weight | 94.49g |
| Mating Force | 23Ncn |
| Un-Coupling Force | 8.51 lb |
| Environmental Specification | Value |
|---|---|
| Operating Temperature | -55 to +155 Deg C |
| IP Rating ( Mated ) | IP40 |
| Material | Value |
|---|---|
| Centre Contact | Beryllium Copper |
| Outer Contact | Brass |
| Insulator | PTFE |
| Centre Contact Plating | Gold |
| Outer Contact Plating | White Bronze |
| Magnet | NdFeB Grade N42 |
| Pack Size | 1 |
