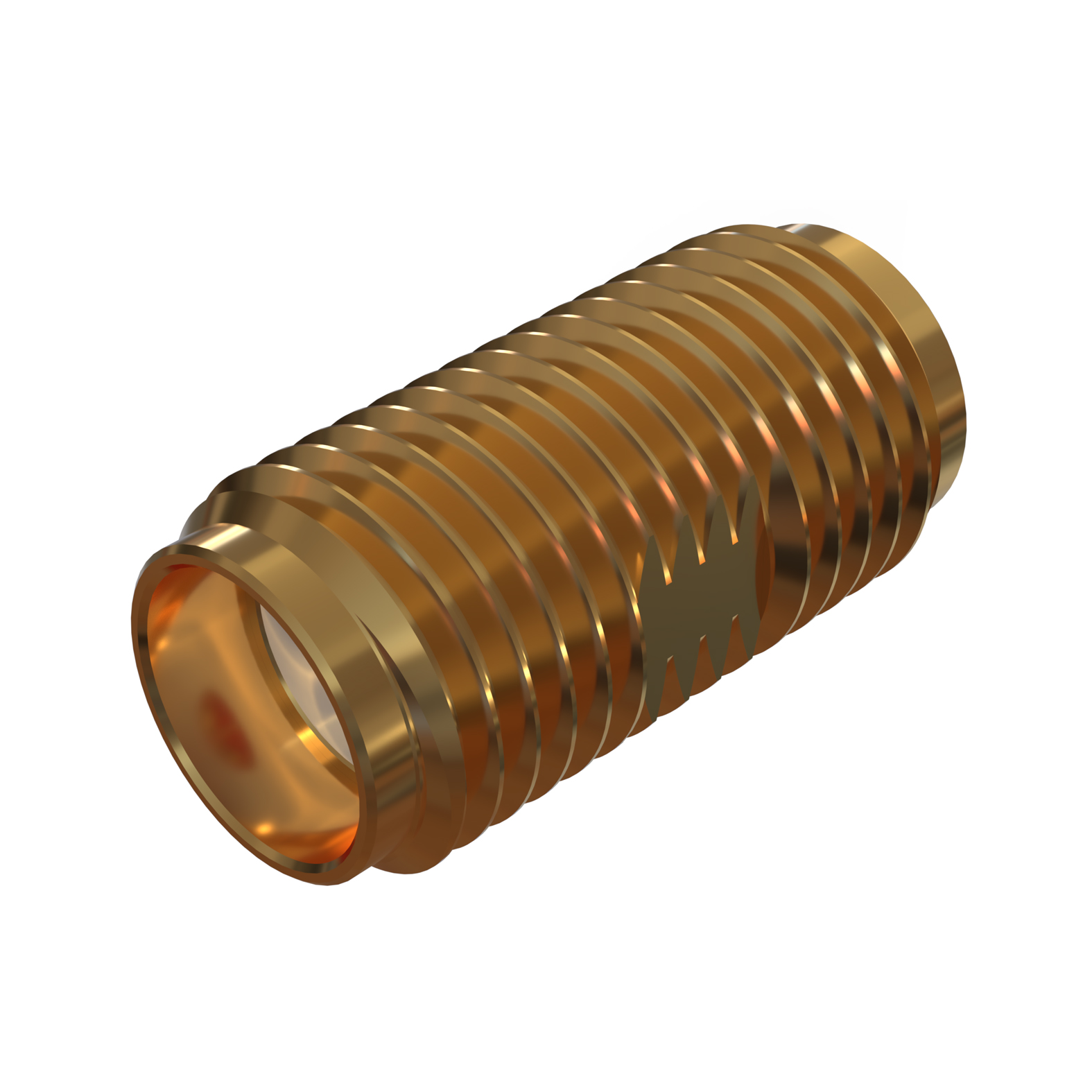

SMA Straight Jack to Jack Adaptor
SMA straight jack to jack adaptor with gold plated body and centre contact.
Menu
- +44(0)20 8538 9090
SMA straight jack to jack adaptor with gold plated body and centre contact.
| Electrical Specification | Value |
|---|---|
| Impedance | 50 Ohm |
| Frequency Range | 12.5GHz |
| Dielectric Withstand Voltage | 750 Veff |
| Insulation Resistance | 5000 M-Ohm |
| Mechanical Specification | Value |
|---|---|
| Design Standard | IEC 60169-15 |
| RoHS 3 Compliant | Yes |
| Mating Cycles | 100 |
| Contact Retention | 27N min |
| Weight | 2.6g |
| Mating Force | 23Ncn |
| Un-Coupling Force | 23Ncn |
| Environmental Specification | Value |
|---|---|
| Operating Temperature | -55 to +155 Deg C |
| IP Rating ( Mated ) | IP67 |
| Material | Value |
|---|---|
| Centre Contact | Phosphor Bronze |
| Outer Contact | Brass |
| Insulator | PTFE |
| Centre Contact Plating | Gold |
| Outer Contact Plating | Gold |
| Pack Size | 1 |
