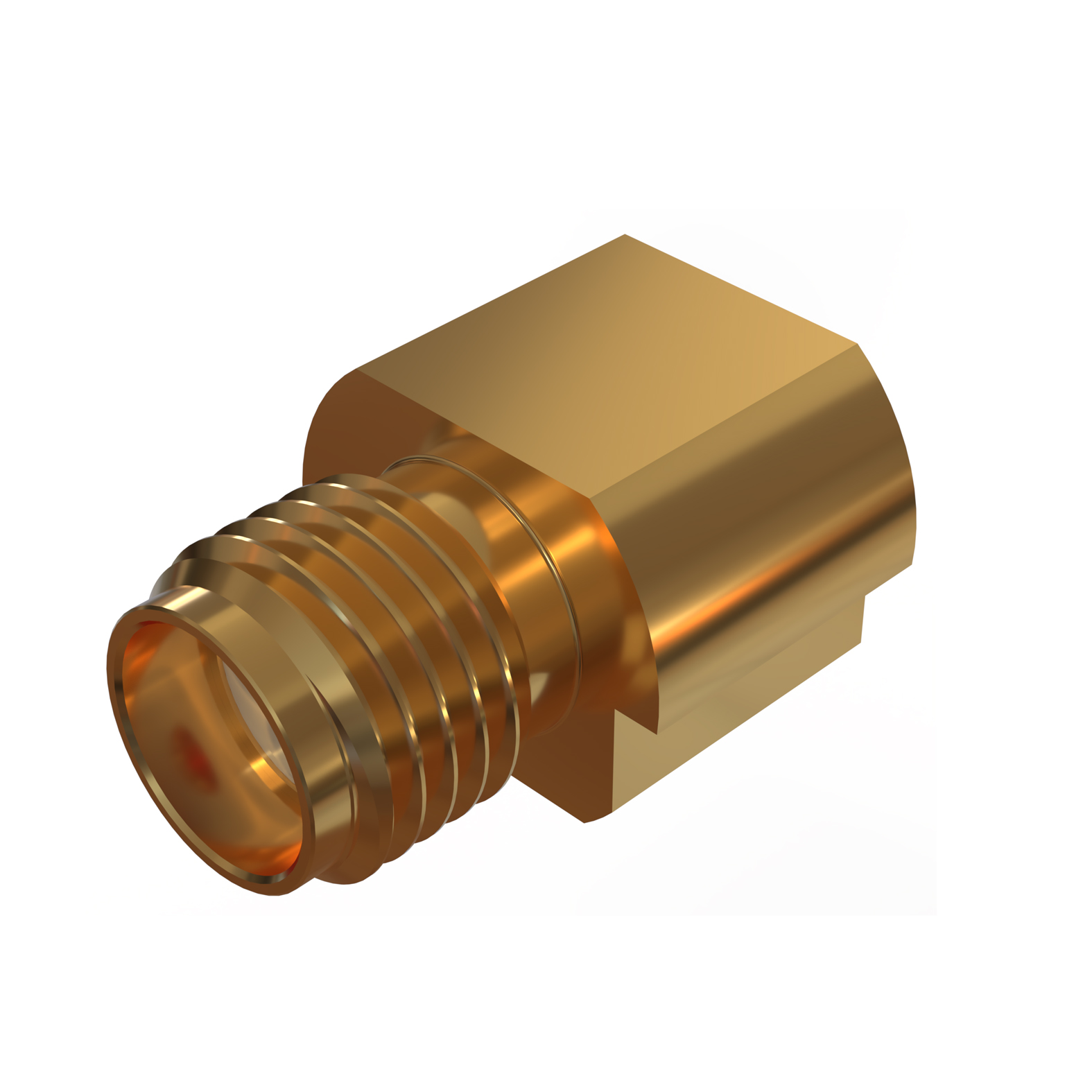

SMA Inset end launch PCB jack Suitable for soldering to a PCB . Contact and body are gold plated. Has a Large Flat Surface Area Ideal For Pick & Place Process
| Electrical Specification | Value |
|---|---|
| Impedance | 50 Ohm |
| Frequency Range | 18GHz |
| Dielectric Withstand Voltage | 750 Veff |
| Insulation Resistance | 5000 M-Ohm |
| Mechanical Specification | Value |
|---|---|
| Design Standard | IEC 60169-15 |
| RoHS 3 Compliant | Yes |
| Centre Contact Termination | Solder |
| Outer Contact Termination | Solder |
| Mating Cycles | 100 |
| Contact Retention | 27N min |
| Weight | 3.3g |
| Mating Force | 23Ncn |
| Un-Coupling Force | 23Ncn |
| Environmental Specification | Value |
|---|---|
| Operating Temperature | -55 to +155 Deg C |
| IP Rating ( Mated ) | IP40 |
| Material | Value |
|---|---|
| Centre Contact | Beryllium Copper |
| Outer Contact | Brass |
| Insulator | PTFE |
| Centre Contact Plating | Gold |
| Outer Contact Plating | Gold |
| Pack Size | 1 |
