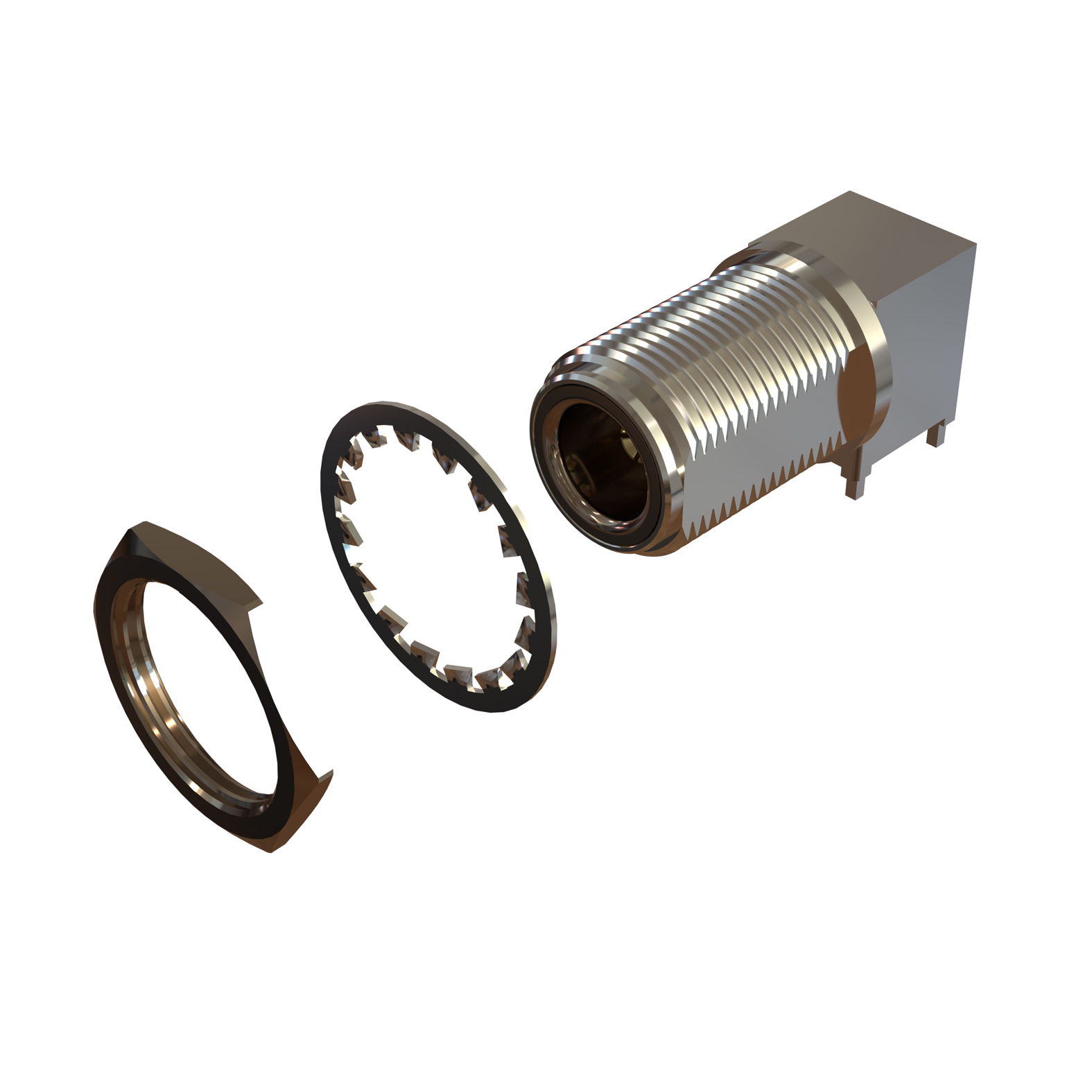

N Type Right Angle PCB Mount 50 ohm jack. With double flat for D hole mounting the Outer Body is nickel Plated and gold plated centre contact.
| Electrical Specification | Value |
|---|---|
| Impedance | 50 Ohm |
| Frequency Range | 3GHz |
| Dielectric Withstand Voltage | 1500 Veff |
| Insulation Resistance | 5000 M-Ohm |
| Mechanical Specification | Value |
|---|---|
| Design Standard | IEC 61169-8 |
| RoHS 3 Compliant | Yes |
| Centre Contact Termination | Solder |
| Outer Contact Termination | Solder |
| Mating Cycles | 500 |
| Contact Retention | 27N min |
| Weight | 45.47g |
| Mating Force | 6.6Ncm max |
| Un-Coupling Force | 6.6Ncm max |
| Environmental Specification | Value |
|---|---|
| Operating Temperature | -55 to +155 Deg C |
| IP Rating ( Mated ) | None |
| Material | Value |
|---|---|
| Centre Contact | Phosphor Bronze |
| Outer Contact | Brass |
| Insulator | PTFE |
| Centre Contact Plating | Gold |
| Outer Contact Plating | Nickel |
| Pack Size | 1 |
| COAX Direct Product | Yes |
|---|---|
