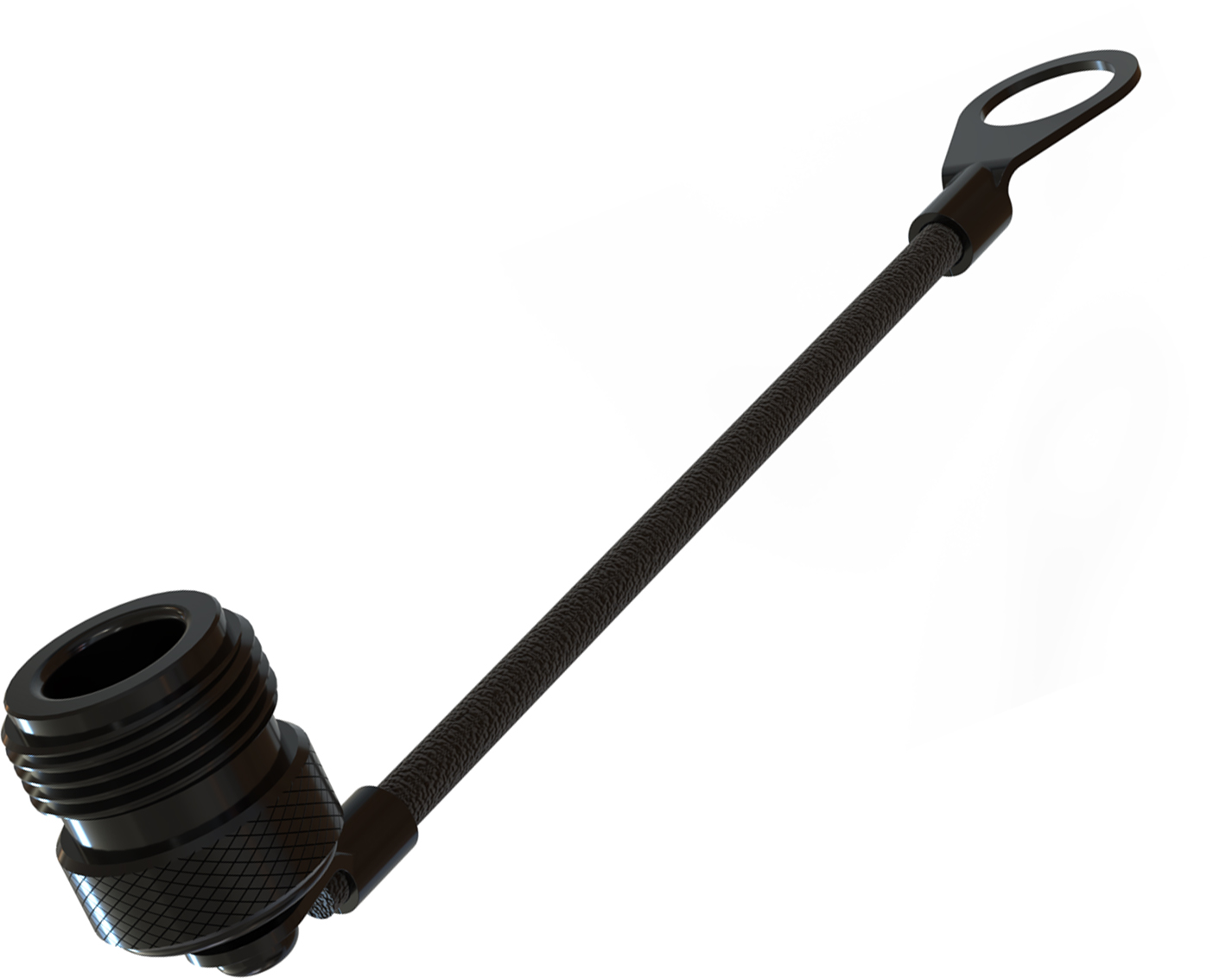

N Type Jack Protective Cap With Cord ( Black Finish )

PART No. 25-857-Y Categories Connectors, N Type, N Type Jacks

N Type IP66 Mated dust cap for protecting a Plug connector with a 75 mm black cord with a 11.2 mm Eyelet. Finished in a black non-reflective finish

Make an enquiry

Specs

Cables

Assembly

Performance

Accessories

Downloads

Additional Info

Specs

Specifications

Mechanical Specification	Value
Design Standard	IEC 61169-8
RoHS 3 Compliant	Yes
Mating Cycles	500
Contact Retention	27N min
Mating Force	6.6Ncm max
Un-Coupling Force	6.6Ncm max
Weight	24.29g
Recommended Coupling Nut Torque	170Ncm Max

Environmental Specification	Value
Operating Temperature	-55 to +155 Deg C
IP Rating ( Mated )	IP66

Material	Value
Outer Contact	Brass
Outer Contact Plating	Black Nickel
Pack Size	1

Cables

Cables

Supports the following cables in cable group:

Cable Type	Cable Group	Impedance	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor

Assembly

Assembly

Connectors, N Type, N Type Jacks

Performance

Performance

No performance values currently available for this product

Accessories

Accessories

No accessories currently associated with this product

Downloads

Downloads

Interface Dimensions

No step file for this product

General Notes Assembly

General Notes Recycling

Additional Info

Additional information

COAX Direct Product	Yes
Connector Style	Straight
Contact Termination Centre	Other
Contact Termination Outer	Other
Gender	Jack
Impedance	Other
